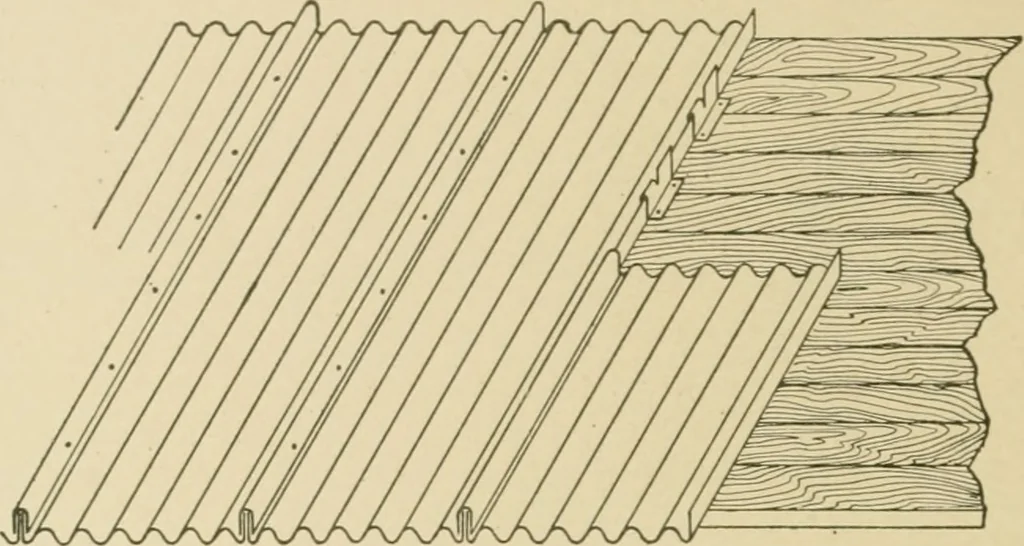

e. Then lap thecorrugated iron over the valley from 6 to 8 inches. ^Vllen a chimney is to be flashed, as shown in Fig. 244, use plainiron, bending up and flashing into the chimney joints, and allowing a&T 188 SHEET METAL WORK the flashing to turn up under the corrugated iron at the top about… … Fig. 242. being well bedded in roofers cement. ^Vllen a water-tight joint isrequired around a smoke stack, as shown in Fig. 245, the corrugatediron is first cut out as shown, then a flashing built around one half theupper part of the stack to keep the water from entering inside. This is best done…
