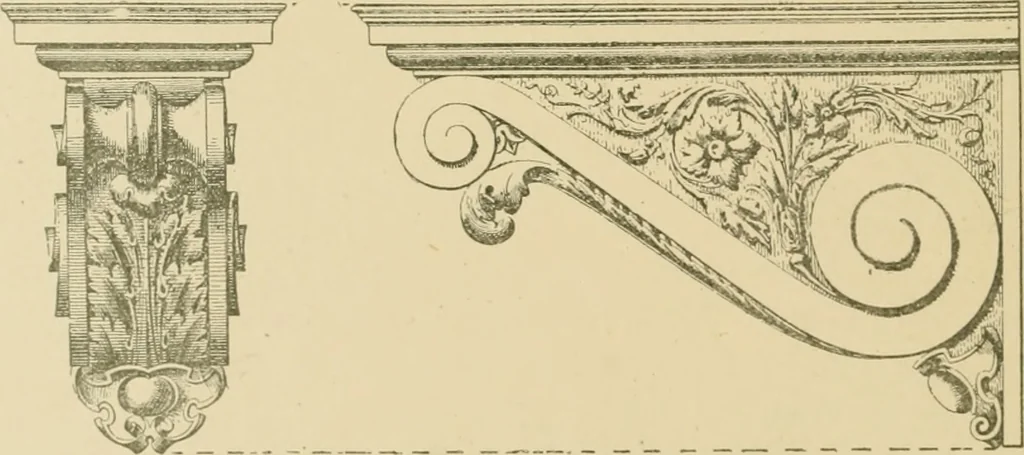

FRONT ELEVATIONFig. 259. such a miter. Hence the term raked moulding means one whoseprofile has been changed to admit of mitering. The term miter, in common usage, designates a joint in a mould-ing at any angle. Drawings form a ver^ important part in sheet-metal architectural … FRONT ELEVATION SIDE ELEVATION Fig. 2G0. work. An elevation is a geometrical projection of a building or otherobject, on a plane perpendicular to the horizon—as, for example.Figs. 259 and 263. Elevations are ordinarily drawn to a scale of I or 288
