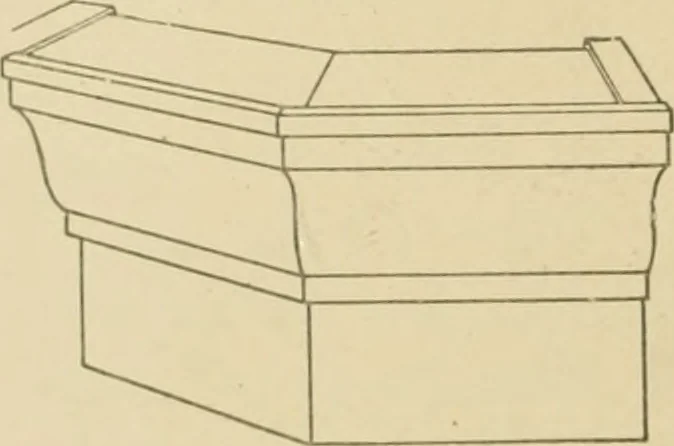

\ to any angle or profile. First draw a^^ section or an elevation of the mouldingas shown by A B 14 1. Directly belowthe moulding, from its extreme point,as 2 3, draw a plan of the desiredangle as shown by C 2 D. Bisect thisangle by using 2 as center and, withany radius, describing an arc… … Fig. 289. 298
