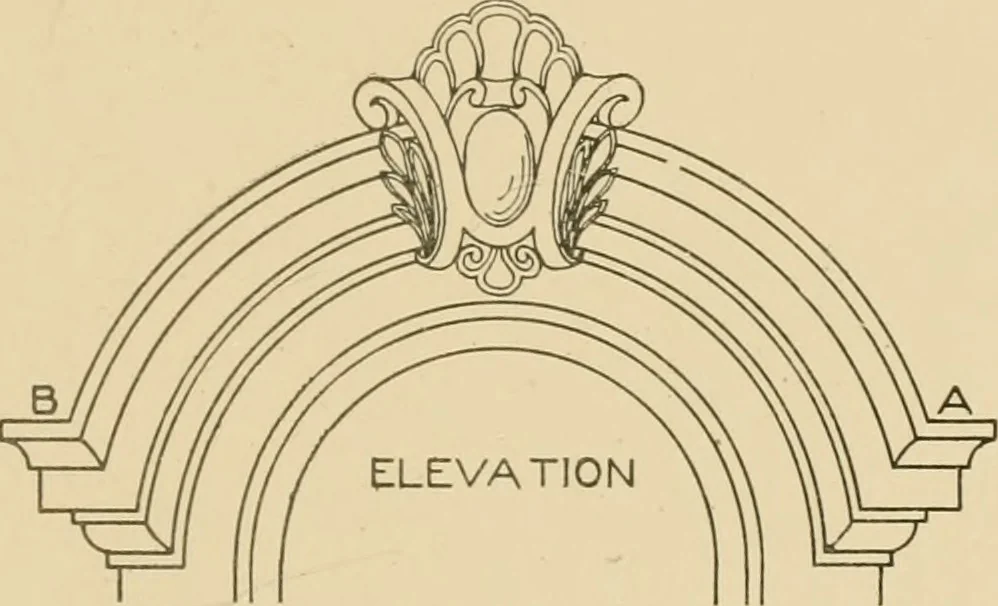

PATTERN FOR D ^ B Fig. 293. draw the elevation of D (Fig. 293), which is to miter at rightangles with a moulding whose profile is C. Proceed in preciselythe same manner as explained in connection with Fig. 292. Dividethe profile D in Fig. 293 into equal parts, as shown, fromwhich draw horizontal… … to the lines of the moulding D, draw the stretchout line A B, upon which place the stretchout of the profile D. At right angles to A B, and through the numbered points of division, draw lines as shown, which intersect by lines drawn parallel to A B from similarly numbered intersections in the…
