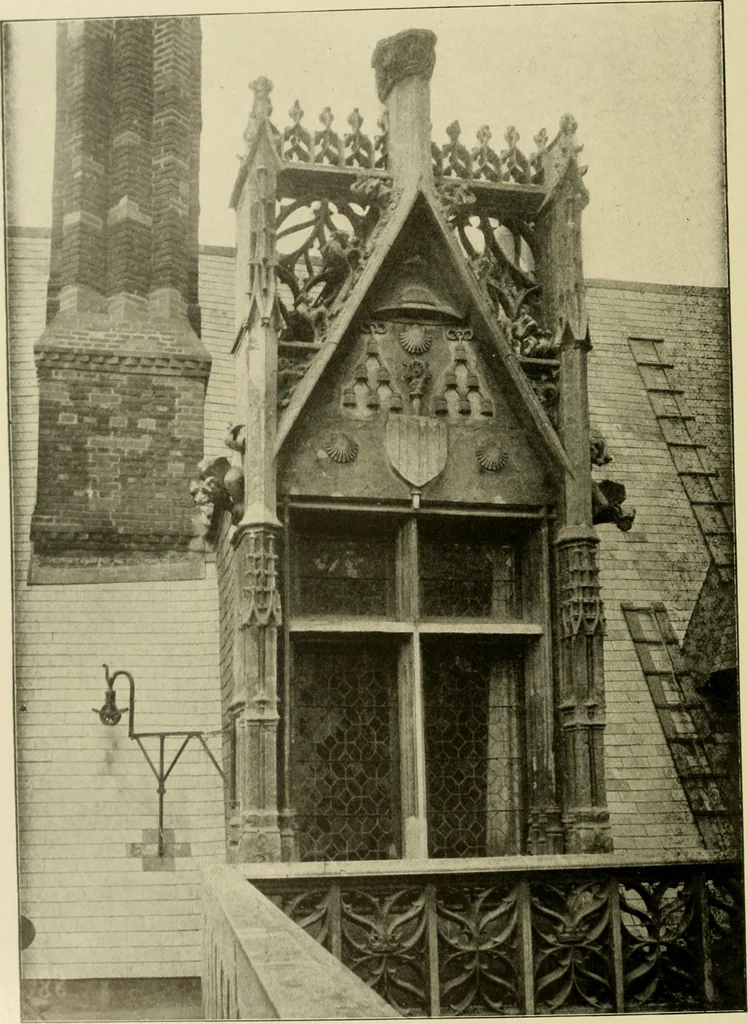

to F D from points of intersection in the miter-lines D Eand J F, JLS shown. I^ines traced through points thus obtained, asshown by N C) P R, will be the pattern for the raking moulding shownin plan, Fig. 307, by A B C Q. In Fig. 309 is shown a view of a spire, square in plan, intersectingfour… … DORMER ON MUSEE DE CLUNY, PARIS. FRANCE Built In the Pitteeuth Century. Note the Figure Sculpture at Sides of Dormer. SHEET :\IETAL WORK 229 draw lines to the apex F. At pleasure, establish A D. At right anglesto F E; and from B and J, draw the lines B H and J K respectively.For the pattern, take…
