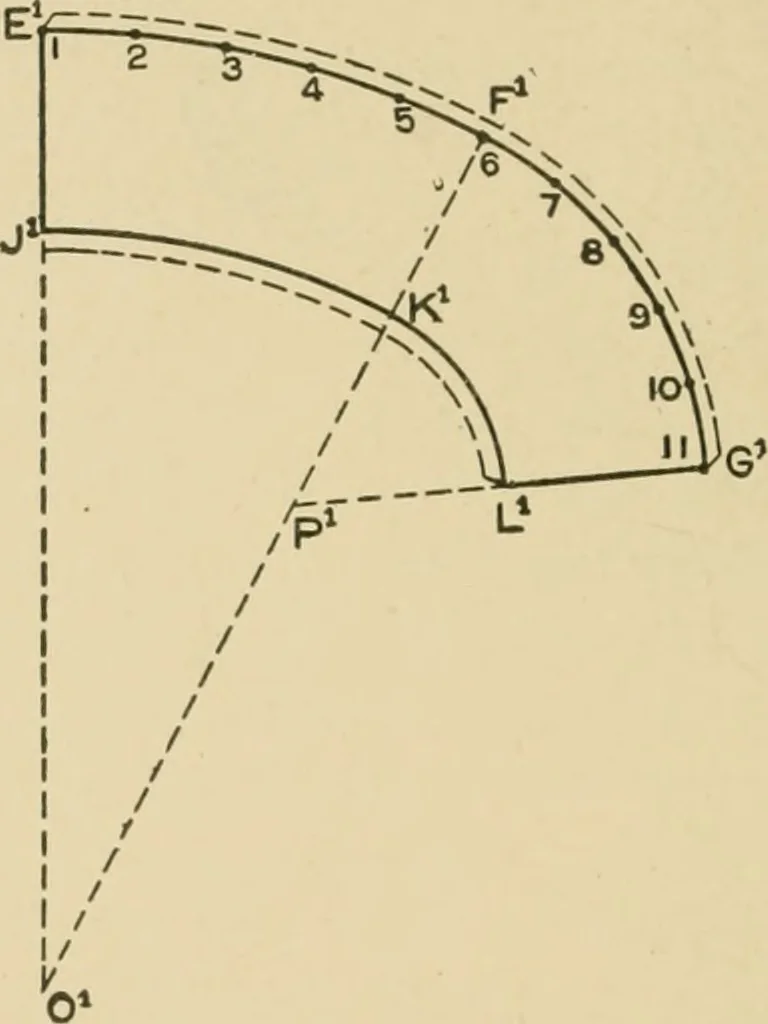

Pig. 35. Now draw a line from Eto J in Fig. 35, extending it until it meetsthe line RC produced. Then OJ and OE will be the radii withwhich to make the pattern for that part of the pan or foot bathshowm in plan in Fig. 34 by EFIvJ and GHIL. To obtain the radii with which to strike the smaller…
