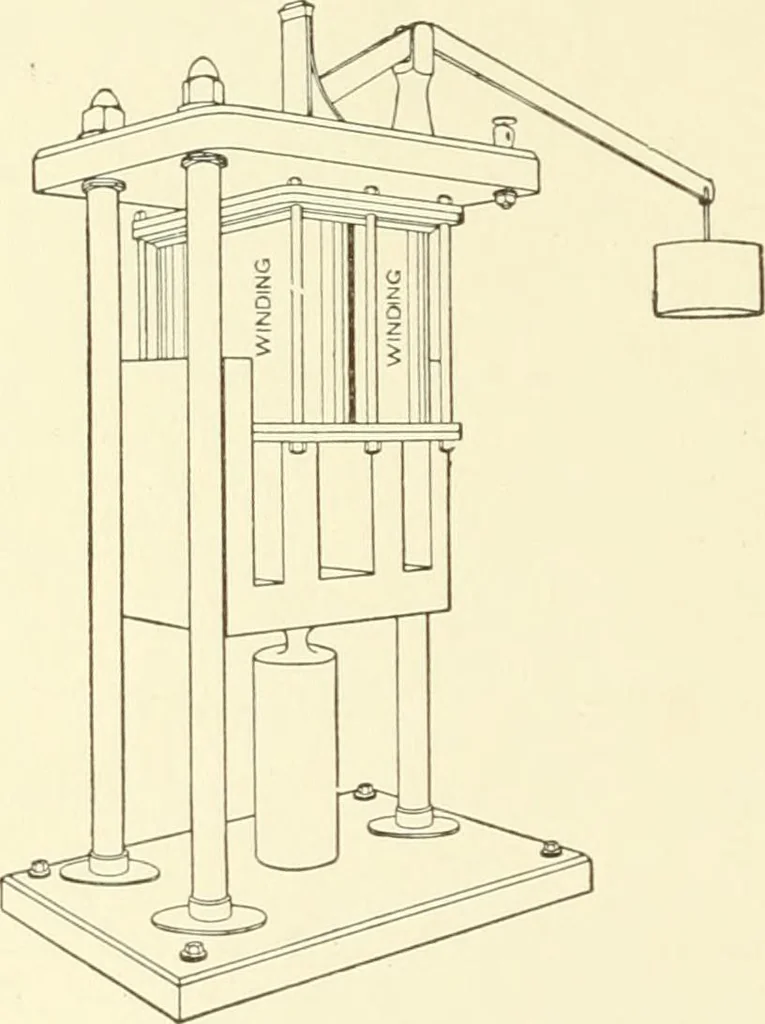

vol-tages at full load reach 4,100for each circuit on the 100-lightmachine. The second system, usedfor series distribution onalternating-current circuitsconsists of a constant-potentialtransformer, stepping down theline voltage to that requiredfor the total number of lampson the system, allowing… … Fig. 47. Current Regulator for A. C. SeriesDistribution Systems. stant. Fig. 47 shows such a regulator and Fig. 48 shows this regu-lator connected in circuit. The inductance is varied by the move-ment of the coil so as to include more or less iron in the magneticcircuit. Since the inductance in…
