Cyclopedia of architecture, carpentry, and building : a general reference work ... (1907)
American School of Correspondence · Chicago : American Technical Society · leaf 339

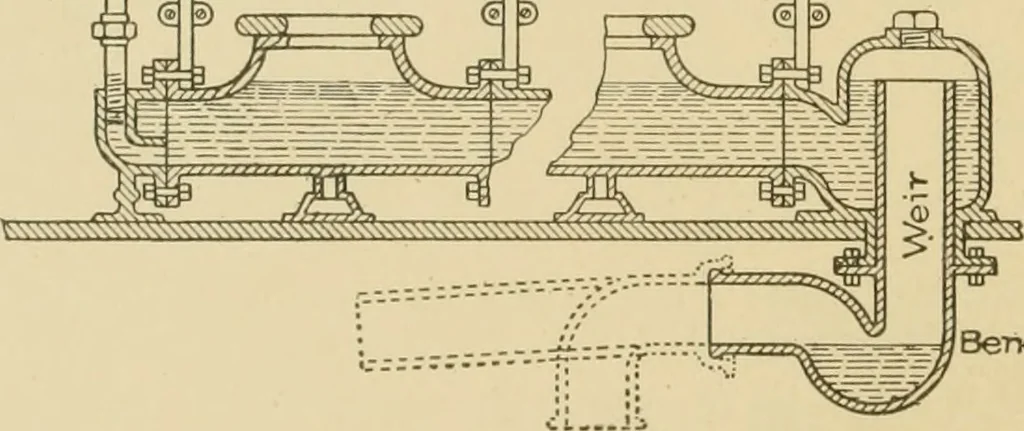

ength partitionsto give a thoroughly private compartment. Ranges are usually madeof cast iron, and almost invariably finished wifn enameled interior andpainted exterior. Bowl or section ventilation is proviiled for wherepossible. Wood seats and covers are generally used; but enameled-iron top… … Bend 276 PLUMBING 5.3 to them, must be well protected against siphonage, because the volumeof water discharged at one time by a range is sufficient to siphon trapsthat would retain their sealsunder most other conditions. Urinals. Sectional uri-nals are made of the same ma-terials and finish, and…
