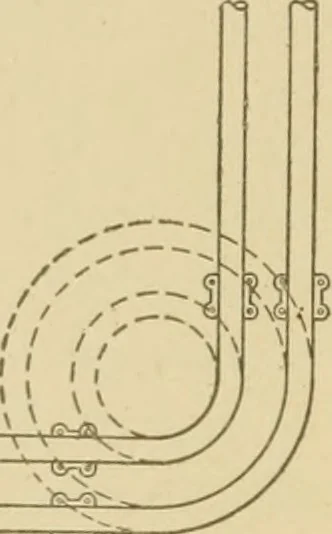

the waste on the house or fixture side. On single runs of lead pipe, make all bends on the same size ofpipe, of the same radius. ]\Iake no bend on any size pipe, excepttubing, of less than 3-inch radius to the center of the pipe. Give |-and 4-inch pipe l^ends 3-inch radius; and I and 1-inch pipe… … Fig. 73. Method of Laying Out Concentric Bends In Parallel Pipes. 298
