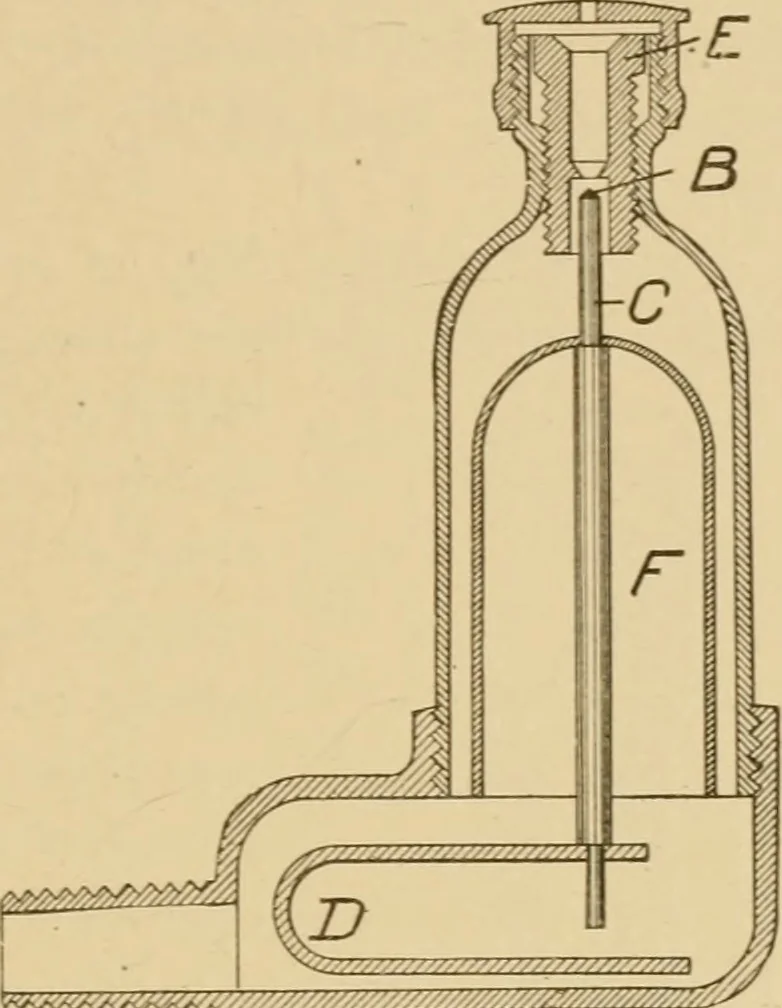

e. If air should collect inthe valve, and .the metal stripbecome cool, it would contract,and the spindle would drop andallow the air to escape through B as before. Eis an adjusting nut. F is a float attached to the spindle,and is supposed, in case of a sudden rushof* water with the air, to rise and… … Uww^oeAydW^/:^/^- Fig. 43. Radiator Automatic Air-Valve. Operated hy Metal Strip D. Consisting of Two Pieces of Metal of Unequal Expansive Power.
