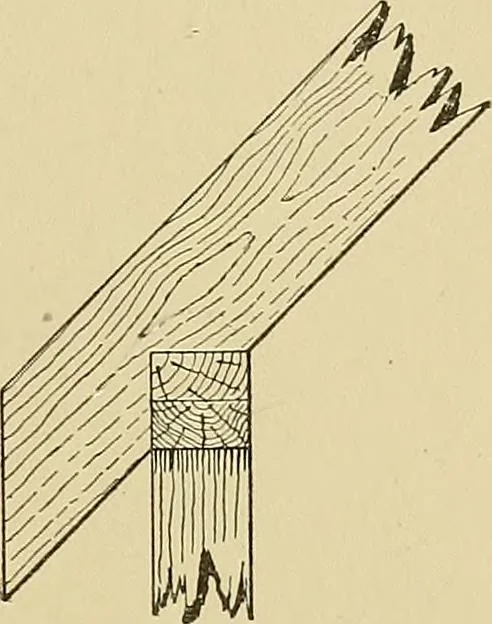

to support theattic floor joists, as shown in Fig. 107, inwhich ^ is a rafter, B the joist spiked to therafter, C the plate built up from 2 X 4-inchpieces, and D the wall stud. It acts in thiscase like a girt, but this arrangement is notvery common, the attic floor joists usually being supported on… … Fig. 106. Section of Platebetween Studs and Rafters
