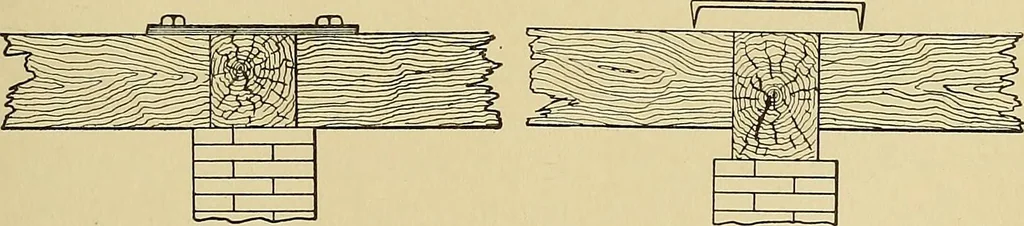

Fig. 151. Joist Sized Down on Girder Fig. 138, or even in some cases very much below, as shown in Fig.151. Both of these methods cause an unsightly projection belowthe ceiling of the cellar. Where the joists are brought flush with … Fig. 152. Fastening Joists by Iron Strap Fig. 153. Fastening Joists by Dog the girder top and bottom, they may be framed into it with a tenon-and-tusk joint, as are the girders, as shown in Fig. 139, and a holebored through the tenon to receive a pin to hold the joist in place. 115 104 CARPENTRY…
