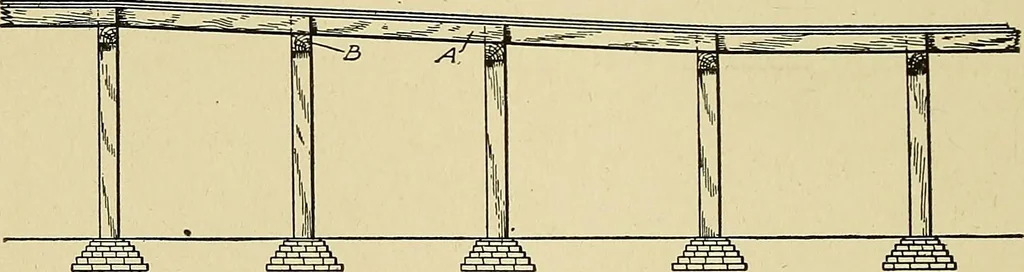

it. The floor laid on top of the joists willthen have the required inclination. The slope of the girders mustbe the same as the slope required for the finished floor. Fig. 219 shows the arrangement when it is desired that thegirder shall run from side to side of the room, at right angles in… … Fig. 219. Building Inclined Floor When Girders Run at Right Angles of Slope is at a different elevation from every other fine of girders, and theseelevations must be so adjusted that the joists resting on top of thegirders will slope steadily from end to end. When a simple inclined floor is…
