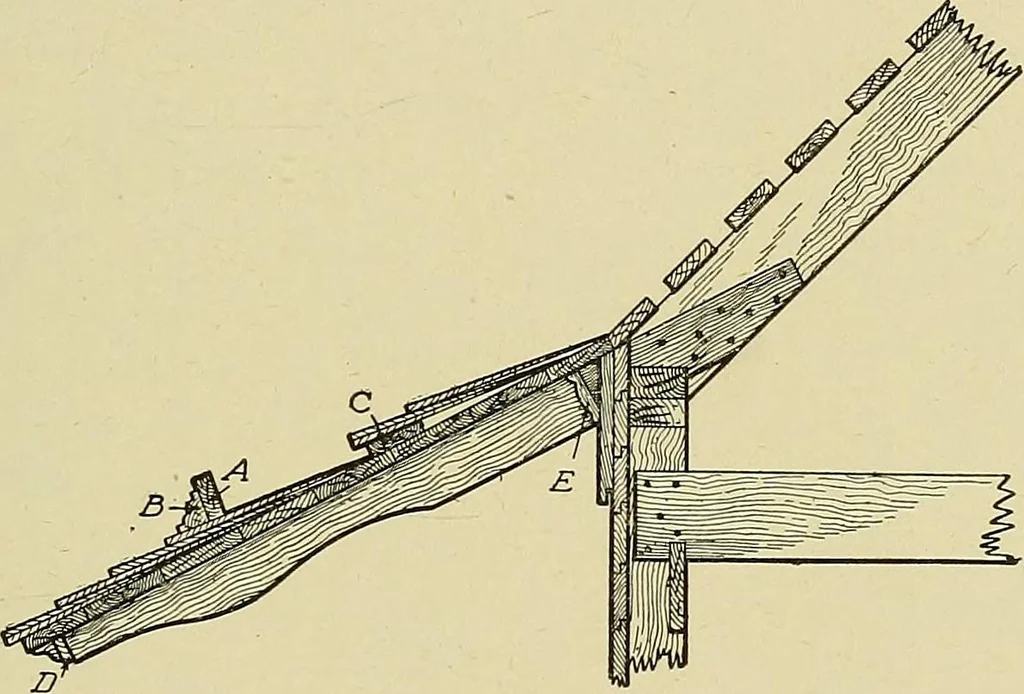

is continuous. The shingles which cover the roofare stopped on the strip C and the inside of the gutter thus built upis covered with galvanized iron, or copper, to make it water-tight.The ends of the rafters may be finished with a fascia as shown at D,and the space between the false rafters along… … Fig. 285. False Rafter Construction with Shallow Gutter Concealed Gutters. Another common form of eave provides aconcealed gutter. In this construction the ceiling joists are extendedbeyond the outside walls and the rafters are cut to set over the plate.The cornice and gutter are illustrated in…
