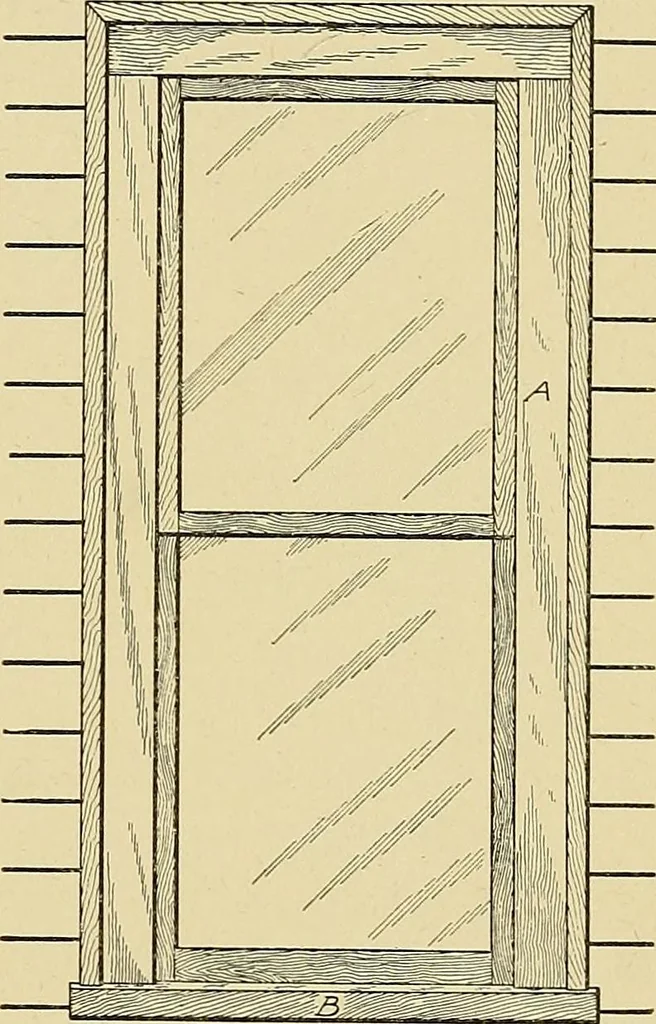

ening in elevation looking from theoutside and showing the outside trim. At A is shown the casingaround the sides and head of the window and at B is shown the sill.In Fig. 305 is shown a section through the sill at the outside of thewall. Here, A is the sill itself which extends through the wall… … Fig, 304. Elevation of Window ShowingOutside Trim 229 218 CARPENTRY boarding attached to the studding; D is the wall covering of shinglesor clapboards; and E is building paper which must be placed betweenthe outside boarding and the wall covering. It will be noticed thatthe under side of the sill…
