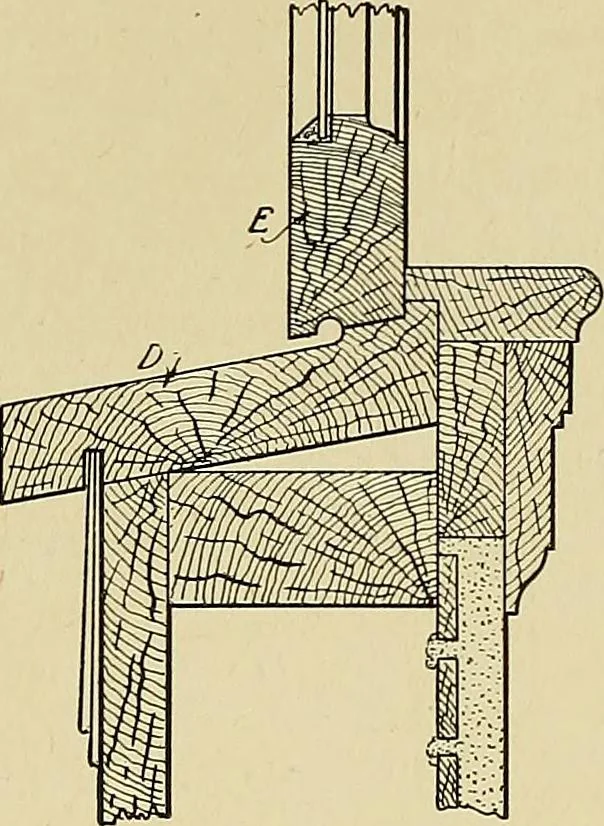

the out-side boarding, C is the plastering. D is the sill, and E is the sash.F and G are the inside finish which cover up the rough sill D. Itwill be seen that the sill D is ploughed on the under side to receiveshingles, as was the sill of the double-hung window. It is rabbetedon the top to receive…
