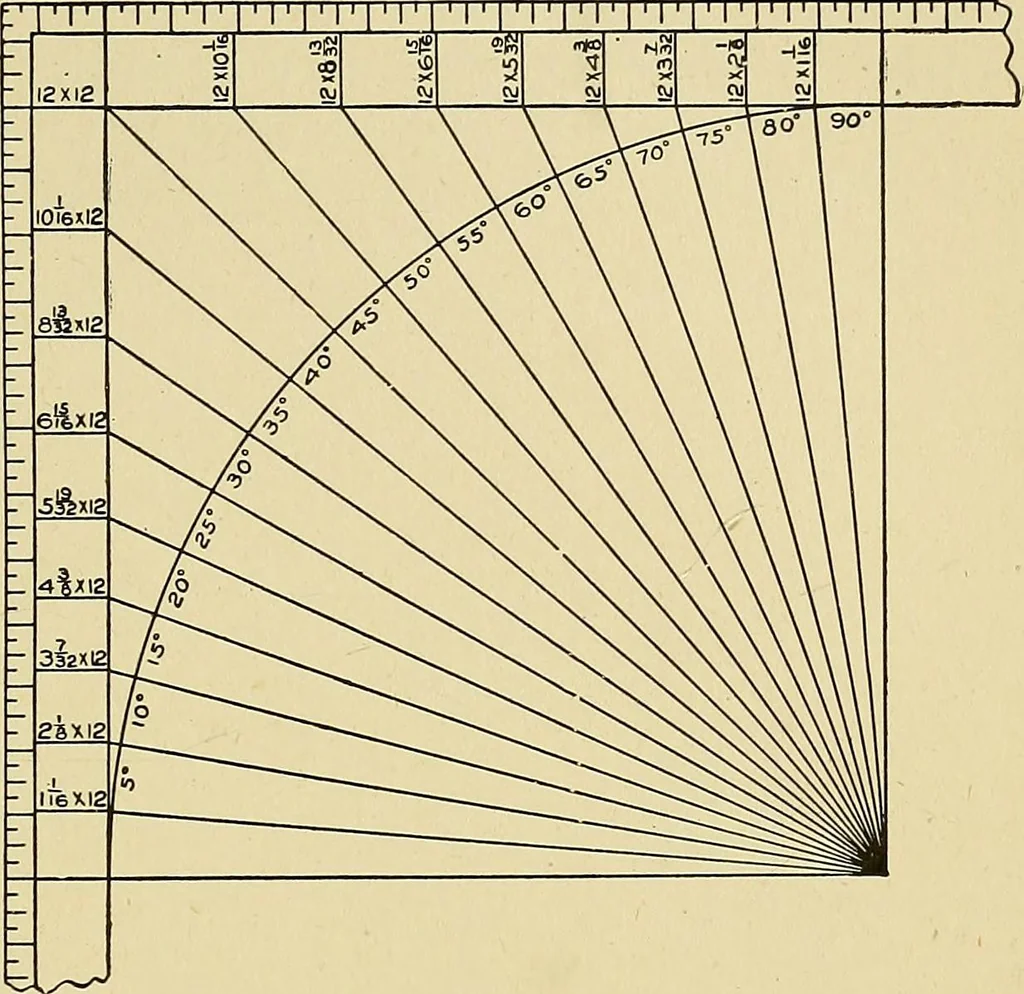

. Fig. 13 illustrates amethod of finding therelative height of a hipor valley per foot run tothat of the common raf-ter. The square is shownplaced with 12 on bladeand 9 on tongue for thecommon rafter; andshows that for the hip therise is only 6y\ inches. The Steel Square asApplied in Roof Fram=…
