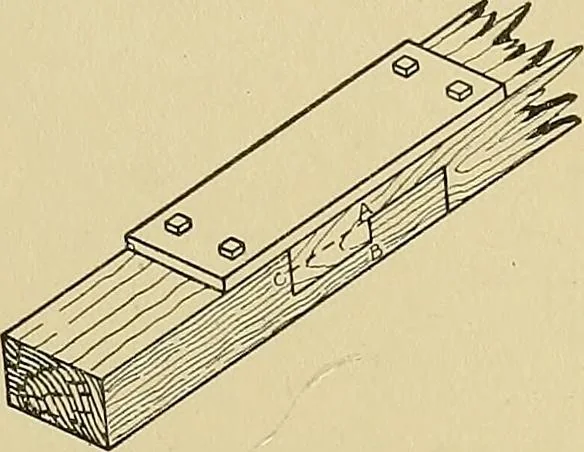

Fig. 57. Beveled Splice Fig. 58. Halved Splice withFish Plates and Bolts Whenever the pieces are cut to fit into one another, as theydo in the halved and beveled splices, the splice is known as a scarfsplice, and the operation of cutting and joining the parts is called 66 CARPENTRY 57 … scarfing. Scarf splices are used, as we have already seen, bothalone and in combination with fish plates. The fished splice is alwaysthe stronger, but the splice where scarfing alone is resorted to hasthe neatest appearance. Splices for Tension. There are several common forms of splicesfor…
