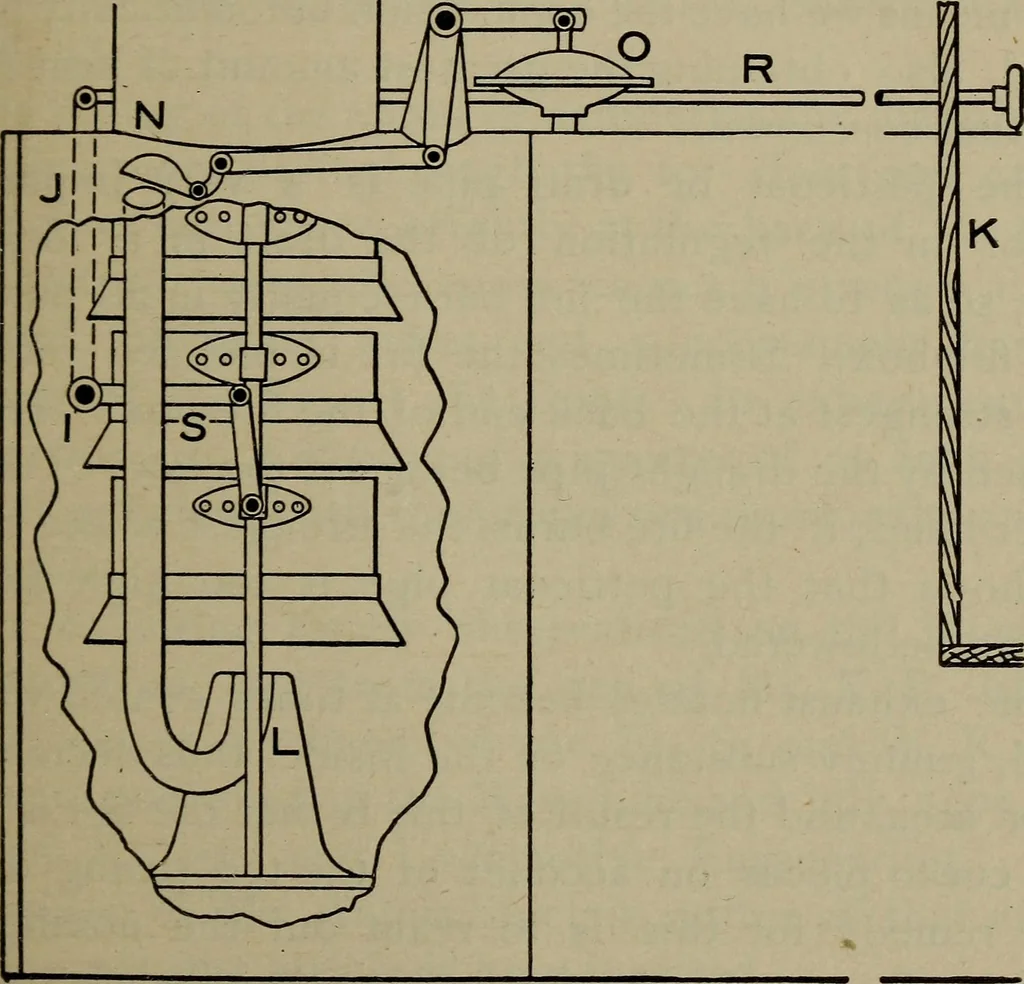

Figure 48 which runs to the cab R. By pulling or pushing therod K the petticoats are raised and lowered, thus IOO LOCOMOTIVE ENGINEERING increasing and decreasing the distance from the exhaustnozzle L, thereby increasing or diminishing the draft.The air tubes M M turn up alongside the exhaustnozzle…
