Cyclopedia of locomotive engineering, with examination questions and answers; a practical manual on the construction care and management of modern locomotives (1916)
Swingle, Calvin Franklin, 1846- [from old catalog] · Chicago, F. J. Drake & co., pub. for Sears, Roebuck & co. · leaf 167

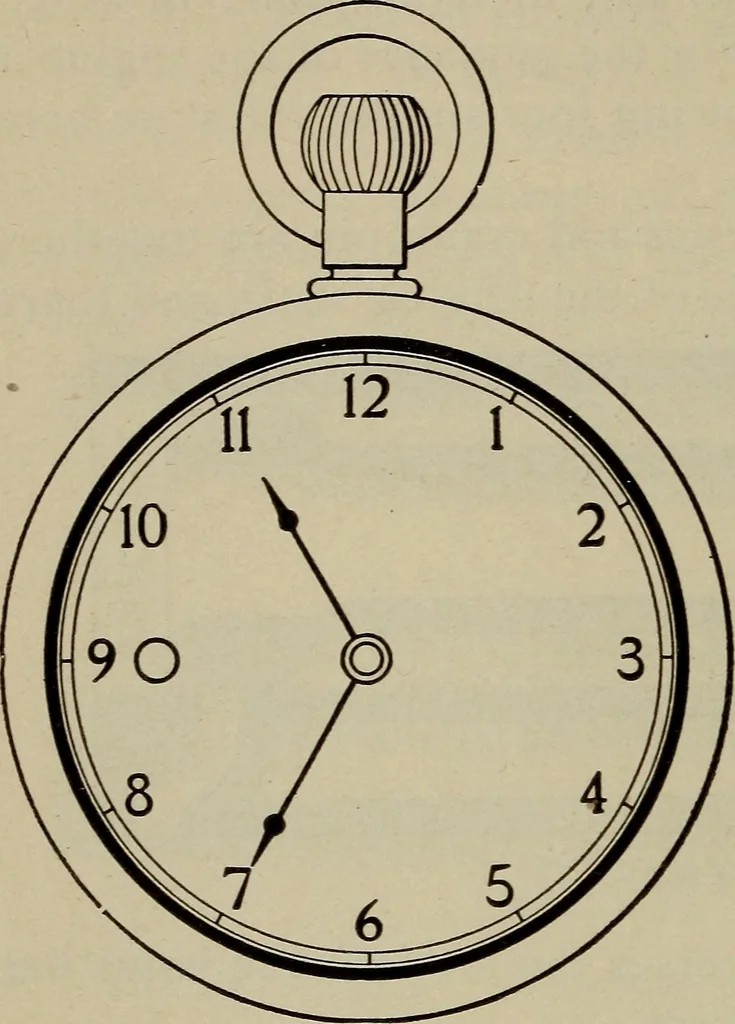

hrough the heavy portions of theeccentrics would be approximately in the same positionas would the hands of a watch indicating five minutesto seven oclock, assuming the crank pins to be at 9oclock (see Fig. 74). Third, outside admission direct,in which the rocker arms do not reverse the motionof… … Figure 74 PISTON VALVES AND BALANCED VALVES 167 jp.m. setting, for the reason that lines drawn throughthe center of the shaft and the heavy portions of thejeccentrics would occupy positions similar to the handsjof a watch indicating five minutes past five, with thecrank pin at nine oclock (see Fig.…
Locomotives
Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
