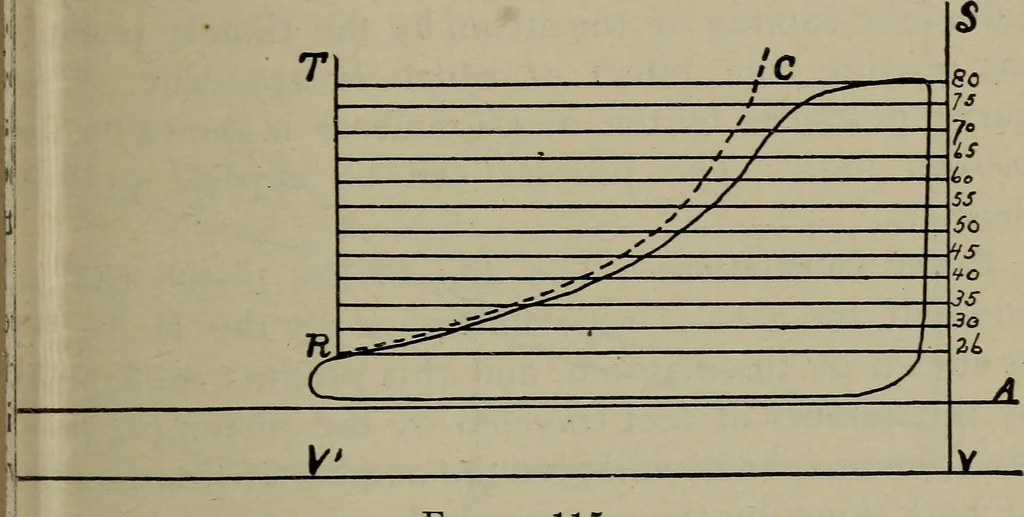

he vacuum line and it a height equal to 26 lbs. above vacuum line V V, ashown by the scale, which in this case was 40. The,ength of line R 26, measured from R to the clearance !!ine, is 3TV in., or 3.0625 in. By reference to Table 4 i|t will be seen that the volume of steam at 26 lbs. absolute, as… … Figure 115 ;[5, etc., up to the initial pressure, the products will behe respective distances from the clearance line ofjoints in the adiabatic curve. These points can be;0narked on the horizontal lines drawn from the clear-ance line to line R T. Starting with line R 26, it has been noted that its…
