Cyclopedia of locomotive engineering, with examination questions and answers; a practical manual on the construction care and management of modern locomotives (1916)
Swingle, Calvin Franklin, 1846- [from old catalog] · Chicago, F. J. Drake & co., pub. for Sears, Roebuck & co. · leaf 308

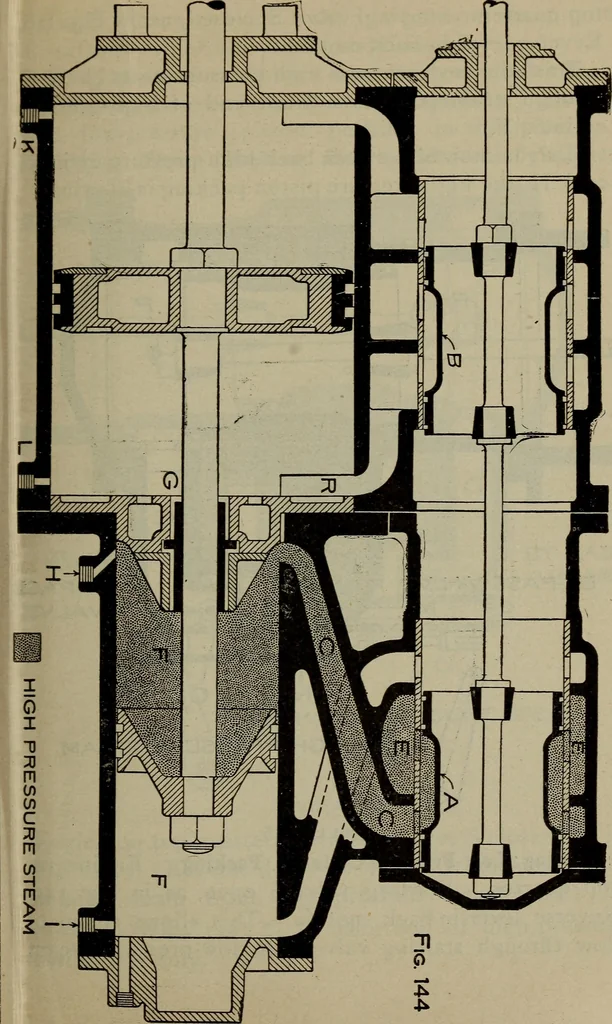

COMPOUND LOCOMOTIVES 3°7 … 3c8 LOCOMOTIVE ENGINEERING top quarter. Starting valve S closed, as in Fig. 146.Reverse lever in back motion. This admits steam from high-pressure steam chest E,through steam port D, to front end of high-pressurecylinder F. If steam now blows from back high-pressure cylindercock H, the…
Locomotives
