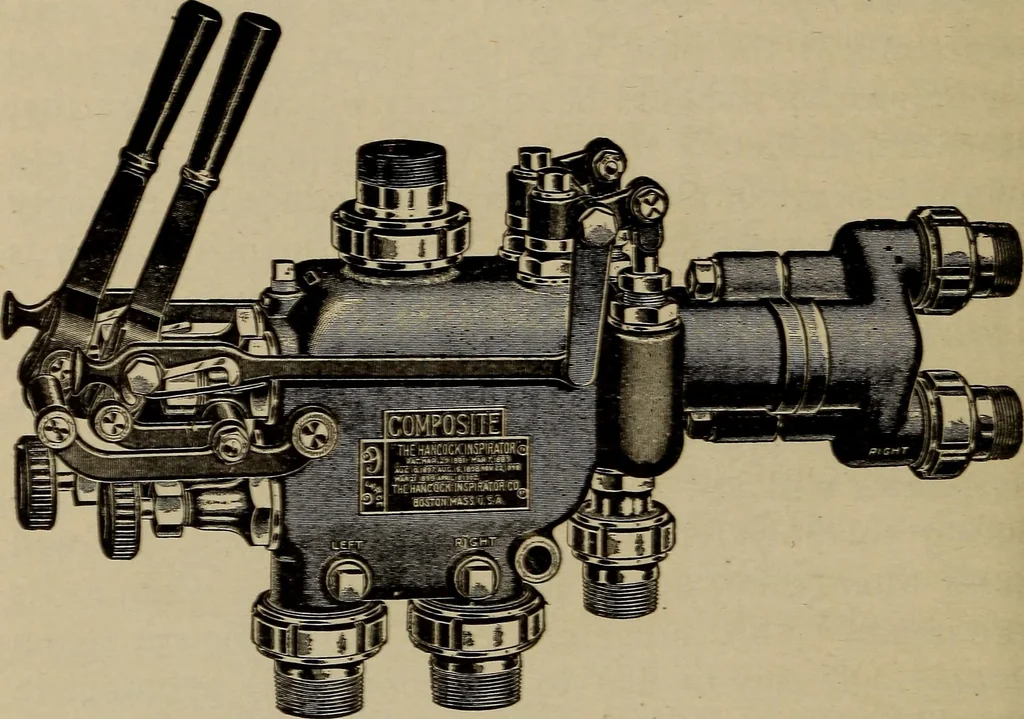

ack to the stop. When the lever, part No. 137, isdrawn back slightly, steam is admitted to the lifter 382 LOCOMOTIVE ENGINEERING steam valve, part No. 130, through the forcer steamvalve, part No. 126, to the lifter steam nozzle, part No. 101. The flow of the steapi into the lifter tube, part No.… … Figure 175Hancock Inspirator, Type Composite valve, part No. 117, in the delivery chamber. Afurther movement of the lever, part No. 137, opensthe forcer steam valve, part No. 126, admitting steamto the forcer steam nozzle, part No. 103, and to theforcer combining tube, part No. 104, creating a…
