Cyclopedia of locomotive engineering, with examination questions and answers; a practical manual on the construction care and management of modern locomotives (1916)
Swingle, Calvin Franklin, 1846- [from old catalog] · Chicago, F. J. Drake & co., pub. for Sears, Roebuck & co. · leaf 465

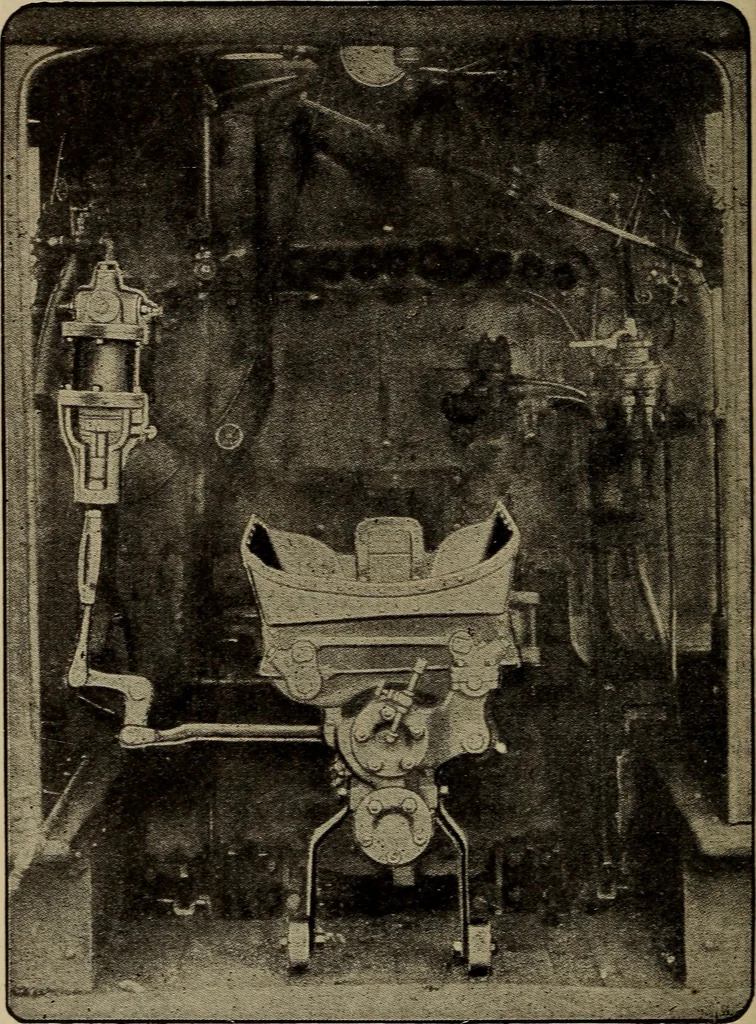

is a transverse view from Fig. 221, and shows the headof the plunger and its position in the trough at theend of each stroke; the conical deflector, attached tothe inside of the door, which spreads the coal m thefire-box, and when the stoker is removed, may be turn-ed up to close the hole occupied… … Figure 220 INJECTORS, STEAM GAUGES, ETC. 453 in which the plunger travels, and the exhaust steamport are likewise shown in this illustration. Fig. 223 shows the hopper raised, and reveals one ofthe twin spiral conveyors which carry the coal forward;it also shows the opening through which the coal…
Locomotives
