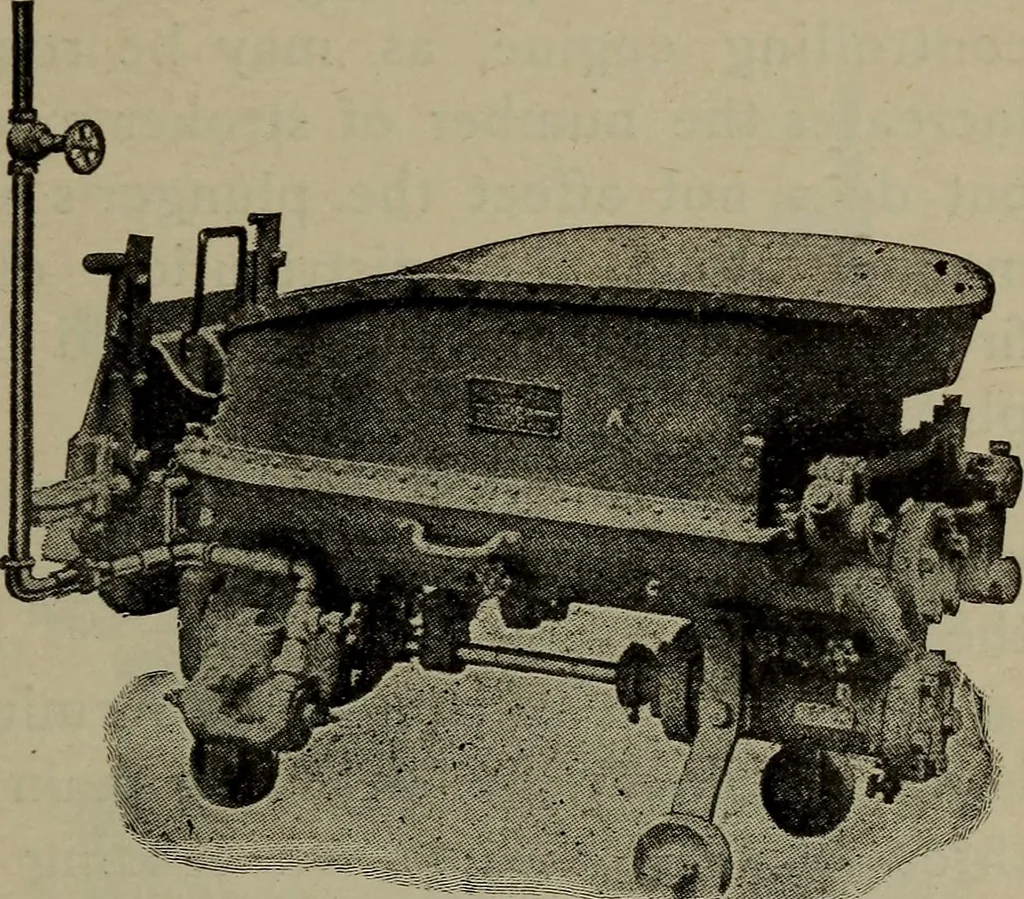

troke is given to the plungerby means of a rotary valve, three separate steamports leading from said valve to the rear end of thecylinder, and three choke plugs, one for each of thesaid steam ports. Second, a small controlling engine. It has beenfound by experience that the most desirable… … Figure 221 454 LOCOMOTIVE ENGINEERING operation of this engine is taken directly from thedome. Third, a hopper with two spiral conveyors journalein the bottom of the hopper pan. The conveyorcarry the coal to the front of the hopper, onto thapron of the plunger, giving a regular and uniformfeed. The…
