Cyclopedia of locomotive engineering, with examination questions and answers; a practical manual on the construction care and management of modern locomotives (1916)

Swingle, Calvin Franklin, 1846- [from old catalog] · Chicago, F. J. Drake & co., pub. for Sears, Roebuck & co. · leaf 497

An illustration from Cyclopedia of locomotive engineering, with examination questions and answers; a practical manual on the construction care and management of modern locomotives, 1916, leaf 497

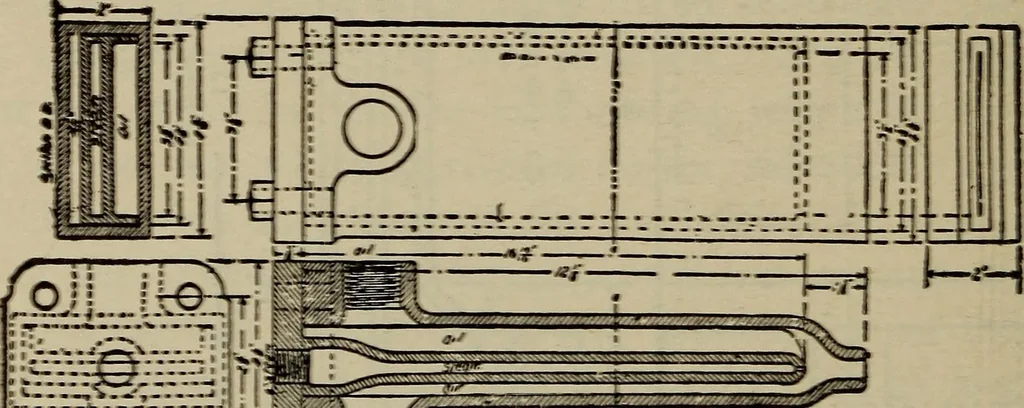

shattering under shocks. Fire bricks having very highheat-resisting qualities and claimed to crack when cool-ing are claimed to be of little use. THE BURNER OR ATOMIZER. One of the principal devices of an oil burning locomo-tive is the burner or atomizer, of which several designsare illustrated in… … Figure 223dDetails of Sheedy Oil-Bcb:ser—Souther:* Pacific contact with it in the air after both have left the burner,or whether this takes place inside the burner. Outsideburners of the Booth type (Fig. 223c) are used exclusivelyon the Santa Fe; and inside burners, Sheedy type (Fig.223d . are…
