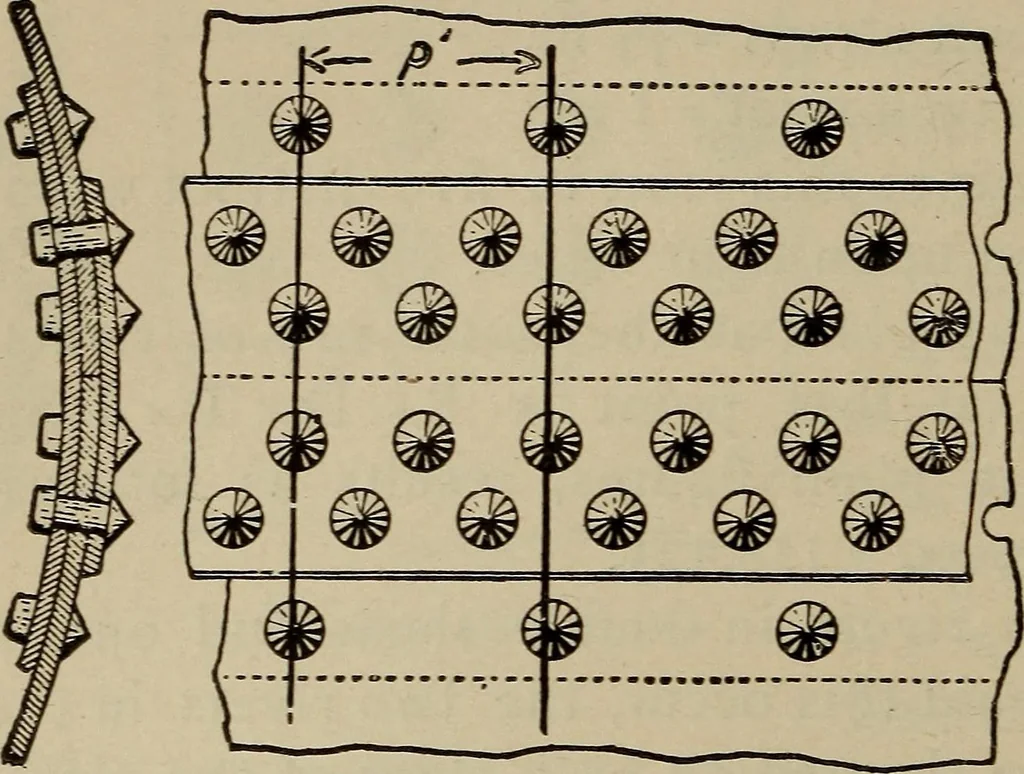

t;ooo= 124,687. 5. Failure may occur by crushing in front of tworivets and shearing one. The resistance is representedby 2D x T x C + iA x S; expressed in figures, 1 x 2 x•4375 x 95,000+ .7854 x 45,000 = 118,468. The strength of a solid strip of plate 5^ in. widebefore drilling is P x T x T.S., or… … which arefollows: T = T\ in. D = U in. A = .69 in. P = 3^ in. P = 6# in. as Failure mayoccur in thisjoint in eitherone of five ways.Figure 22 I, By tearing the plate at theouter row of rivets, where the pitch is 6^ in. Thenet strength of the unit strip at this point is P-DxT x T.S., found as…
