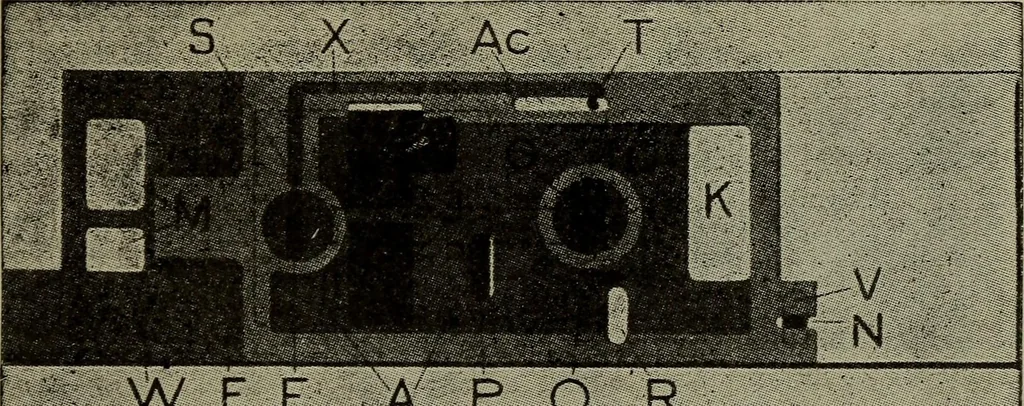

Fig. 275. First Graduating Position. Graduating Positions. (Figs 275 and 276.) Thesepositions give a gradual reduction of brake pipe pres-sure for service applications. In Fig. 275 ports M are … W E F # P t ft-;,, jti Fig. 276. Last Graduating Position. blanked and communication from the main reservoir tothe brake pipe is cut off. The straight air ports E andV are also blanked, as well as ports O and W, which arecut off just before the handle reaches the First Gradual- 642 LOCOMOTIVE…
