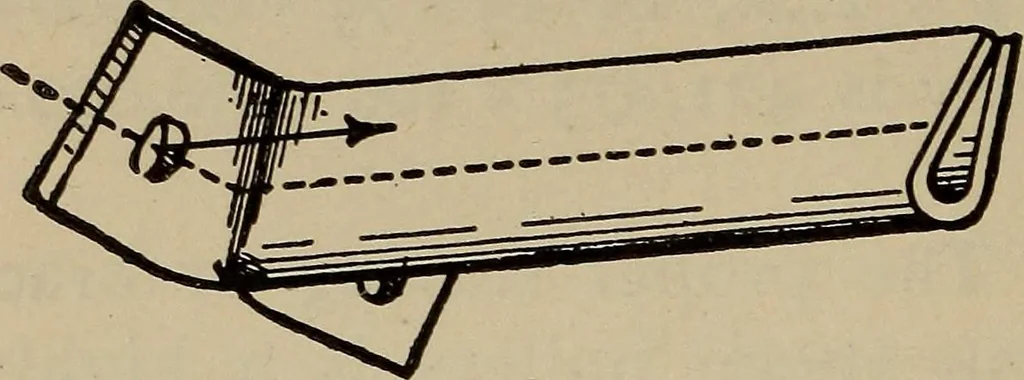

hen inposition is at the foot end, where it is connected tothe head by two rivets. With a correctly designedbrace the pull on these rivets is direct and the tensilestrength of the ma- \ * terial needs to be ^^^jjP^ZT considered only, but £ ^Jf — ~dw if the form of the x. I TifT^ rj brace is such as… … Figure 25 leverage exerted upon the rivets in addition to thedirect pull. Fig. 24 shows a brace of incorrect design and Figs. 25 and 26show braces designedalong correct lines. The problem of prop-erly staying the flatcrown sheet of a hori-zontal fire-box boiler, especially a locomotive boiler,is a…
