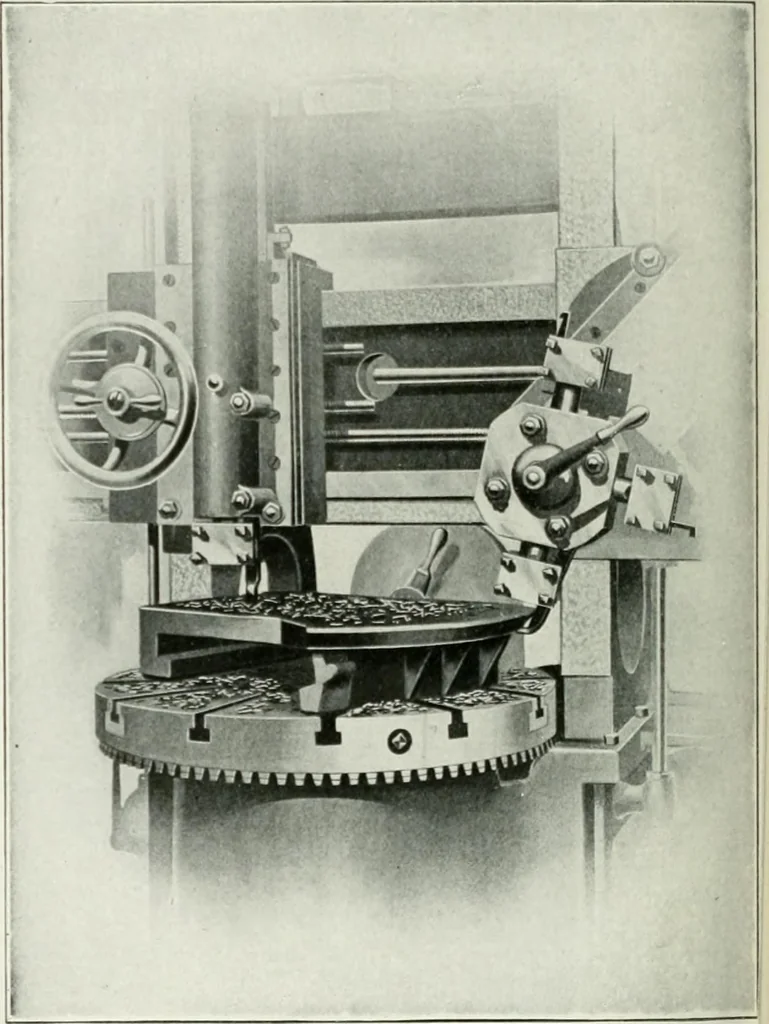

Fig. 111. When work is held in this manner, it is desirable to connte>balance it, as is also shown in Fig. 111. Adjusting Pieces to Center. Whenever a piece is to beturned in a lathe it is necessary to adjust it so that its rough out-line is approximately concentric with the lathe centers. This… … BORING AND TDRNING MILL. Turning Bevel with Swivel Head.Bullard MachlDC Tool Co. MACHINE SHOP WORK.
