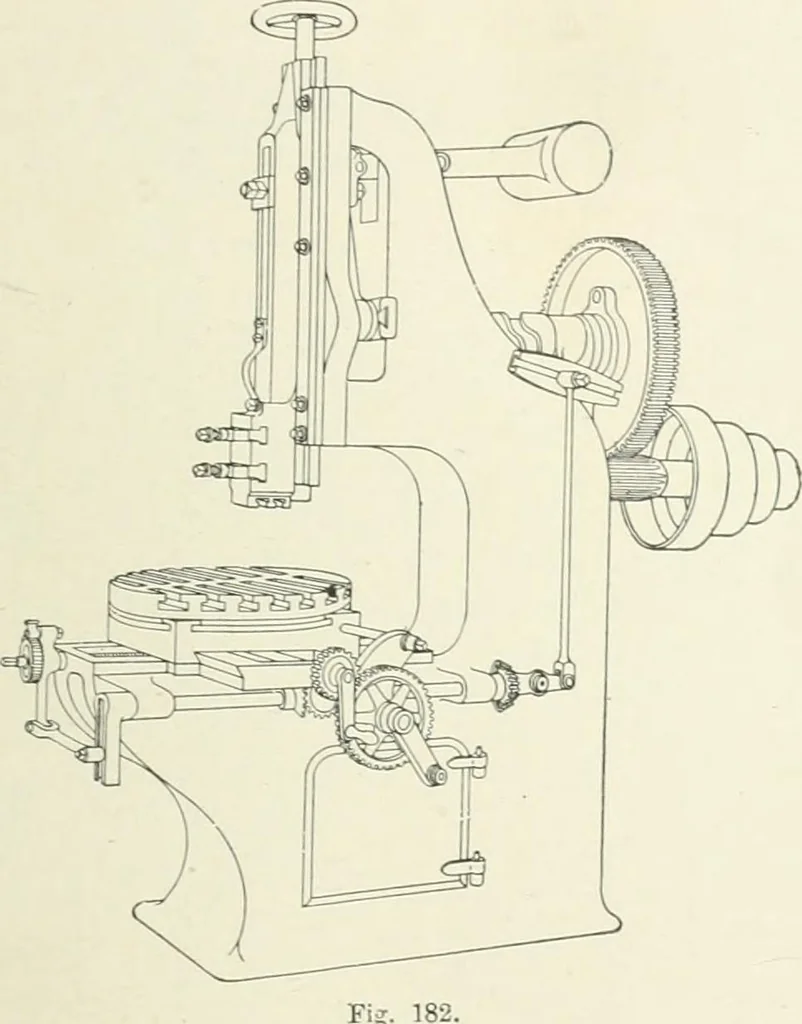

80 is called the pillarshaper, but where the tool and ram move sidewise it is called the MACHINE SHOP WORK. 129 traverse shaper; see Fig. ISl. Tlie character of the work doneon the shadier and the pUuier is identical, but as a rule, the slia[)eris used for tiie smaller and more delicate parts which… … Slotter. Another machine tool which is not used as com-monly as its many good qualities would seem to warrant is theslotter. Fig. 182. It is, in reality, a shaper with the tool, movingvertically instead of horizontally. It is used for working onheavy pieces, and especially in places where an…
