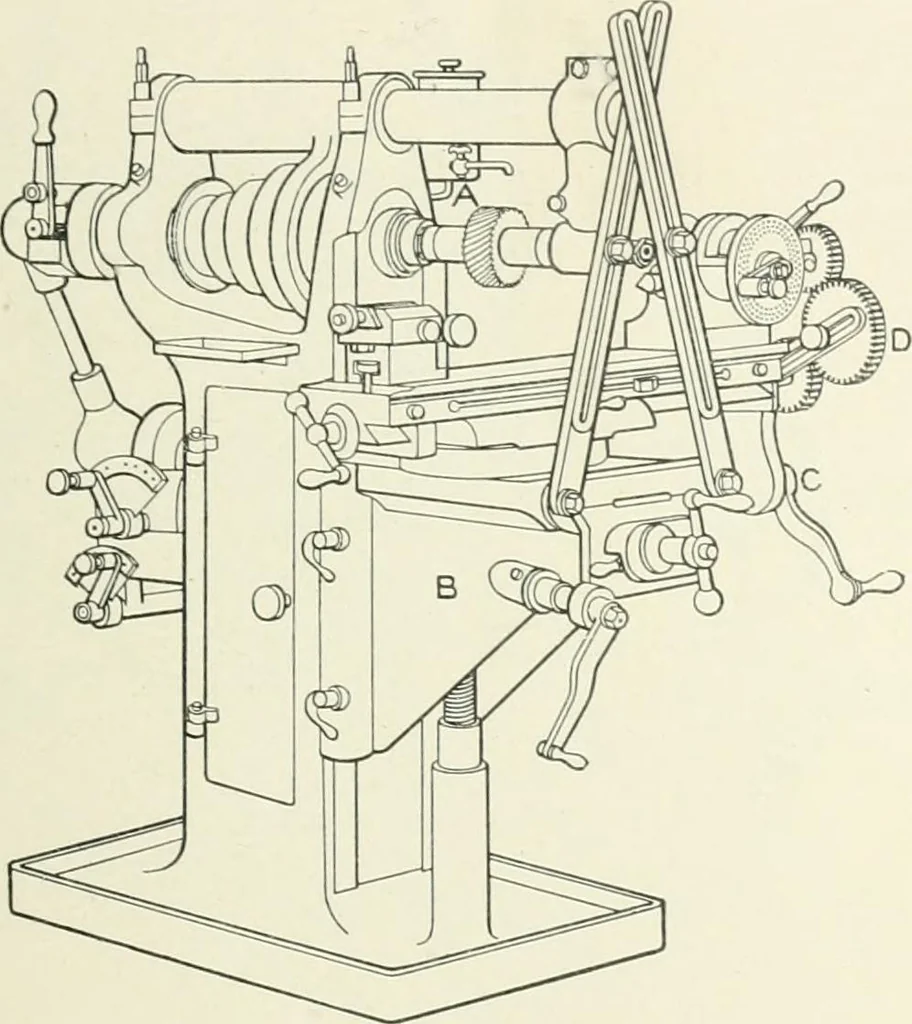

n which accurateadjustment is necessary. A very common method of graduationis by the use of a screw with a pitch of J^ inch and 200 graduations MACHINE SHOP WORK 147 on its dial. In some cases, a screw with a pitch of -| inch is usedwith 250 gnuhiations, biit it is always safe to assume that… … Fig. 210. be neglected. Even in a machine in excellent condition, when themotion of the screw is reversed, it will turn through an angle giv-ing the equivalent of about .005 inch movement of the part beingfed along, but with no actual movement of the part. As an ex-ample, if, in moving the table…
