Cyclopedia of mechanical engineering; a general reference work. Editor-in-chief Howard Monroe Raymond. Assisted by a corps of mechanical engineers, technical experts, and designers of the highest professional standing (1908)

American School (Chicago, Ill.), Raymond, Howard Monroe · Chicago American Technical Society · leaf 302

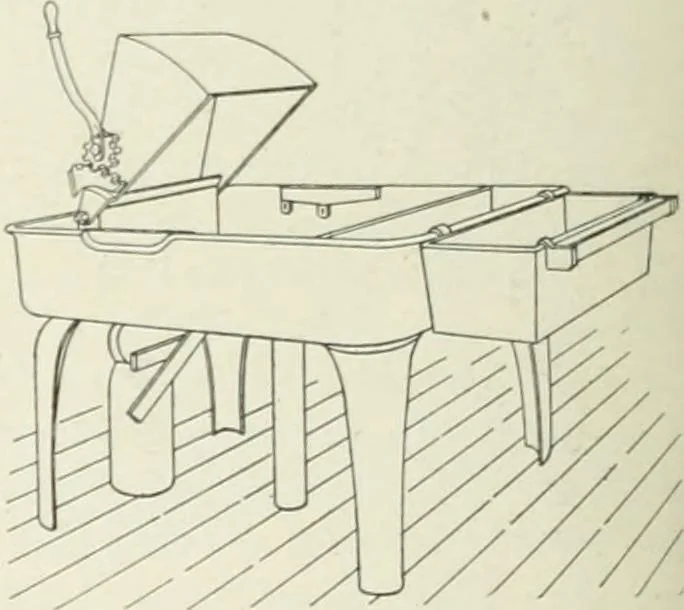

An illustration from Cyclopedia of mechanical engineering; a general reference work. Editor-in-chief Howard Monroe Raymond. Assisted by a corps of mechanical engineers, technical experts, and designers of the highest professional standing, 1908, leaf 302
es, is u.sed for forging. EQUIPMENT. The equipment of the forge shop consists in general of ;i forgein which the metals are heated, iui anvil for resting tlie metals onwhile hammering, and thevarious tools as describedbelow for .shaping andworking. The Forge. While forgesor fires are of many… … Fig. 2. air blast is furnished by a hand bellows, the pipe leading therefrom tothe tuyere is open throughout. Where a power-driven blower furn-ishes the blast, there is a valve in the pipe for regulating the same. 268 FORGING 3 Tlie usual form of tuyere consists of a sins;le l)Iast pipe, open-inj,…
