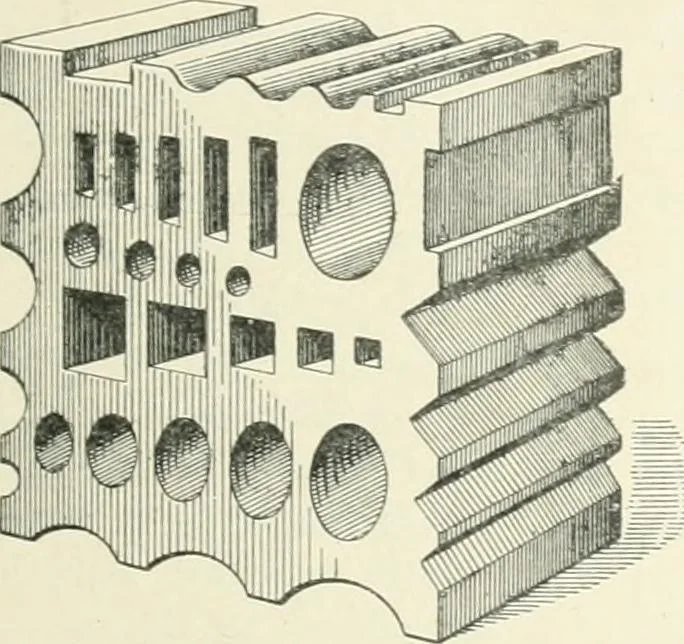

r working grooves or hollows into shape, are alsomade top and bottom as shown in Fig. 12. The top fuller is for fin-ishing into round corners, around bosses, and on the inside of anglesas illustrate{l later on. The fuller is also used to spread metal,when it is wished to work the metal only in one… … Fig. 13. bottom swages. These blocks are commonly made from cast ironand weigh about 150 pounds. Other Tools. The tools used commonly are calipers, a car-penters two-foot .steel square, dividers, a rule, shovel, tongs, ladle,poker and a straight bar for loosening the fire. In addition to…
