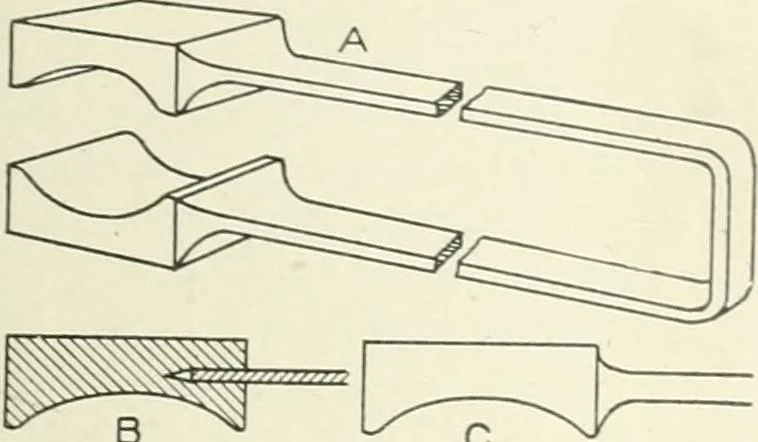

work iscut nearly through as .showni at A. The bar is then turned over anda thin strip of steel with square corners placed on top as shown at B. FORGING A quick hca\7 blow of tlic lianiiner drives this steel bar through thework ami carries away tiio thin fin shown, Icavinj; hotli of the cut… … B ^ ^ C Fig. 14.3. The handle is made in the shape of a .spring and may be either madein one piece with the blocks and dra^sTi out as sho\\Ti at C, or mav bein.serted as .shown at B. This .sort of a tool is kno^\ii as a spring tool.Another s.irt of swage .sometimes u.sed. is illustrated in Fig.…
