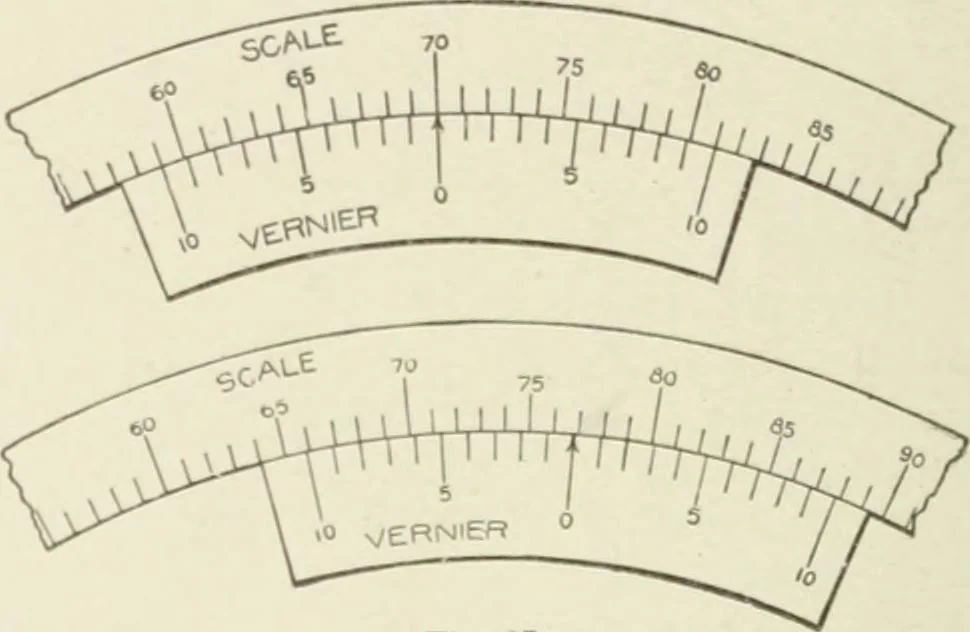

h; when graduationsnundn^red 5 coincide, the ^crnier will have moved five hundredthsof an inch; when lines marked 0 and 10 coincide, the Vernierwill have moved nine hundredths of an inch; and when 10 onthe Vernier comes opposite 10 on the scale, the Vernier will havemoved ten hundredths of an inch,… … ¥\ii. -JT. Let us consider Fig. 26. At A the Vernier is shown withthe 0 in line with 2 on the scale; hence the reading is 2.000. In B, the 0 of the Vernier has moved to the right heyond thedivision marked o. The line 9 on the Vernier is in line with aline on the scale; hence the reading is 2.59. In…
