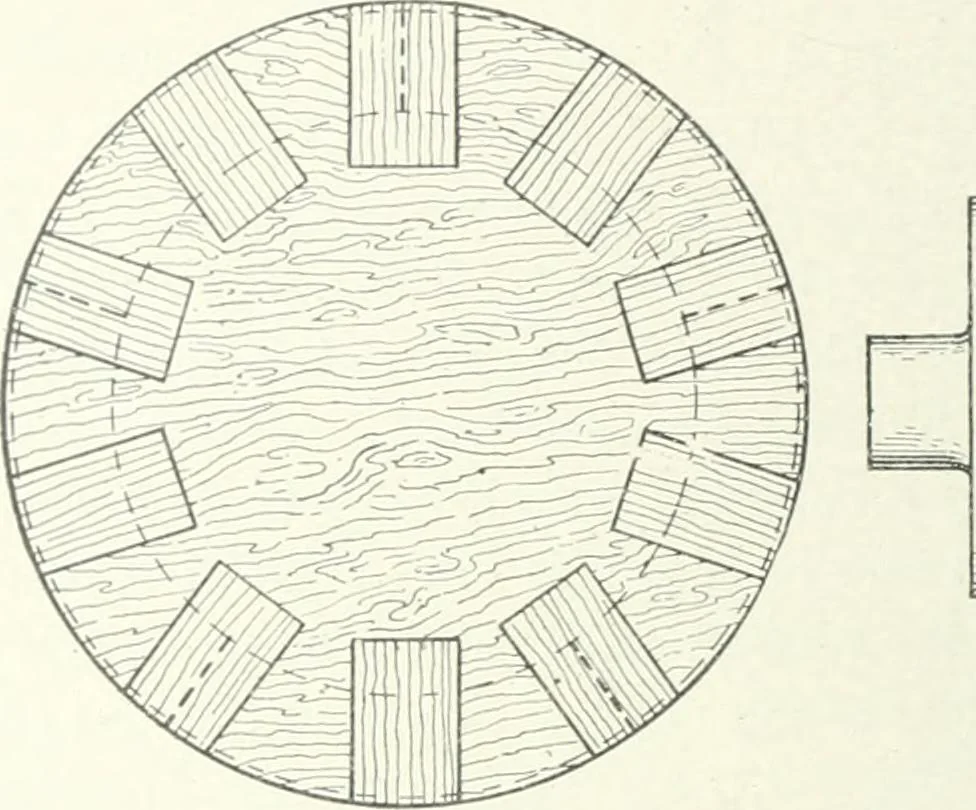

lathe, and turned true on the face and on the edge to 12^: inchesin diameter. Ten blocks 2i; inches long, 2 inches wide, and | inchhi thickness are glued radially at equal distances around the faceof th(? chuck as in Fig. 168. These blocks are turned even withthe edge of the chuck, and the faces… … Fig. 168. Five of these are carefully fitted and glued to the face of theblocks, as shown by the dotted lines in the drawing; and when theglue is dry the chuck is returned to the lathe, and the face of thesegments turned flat and true to receive the second row, which isfitted and glued to the…
