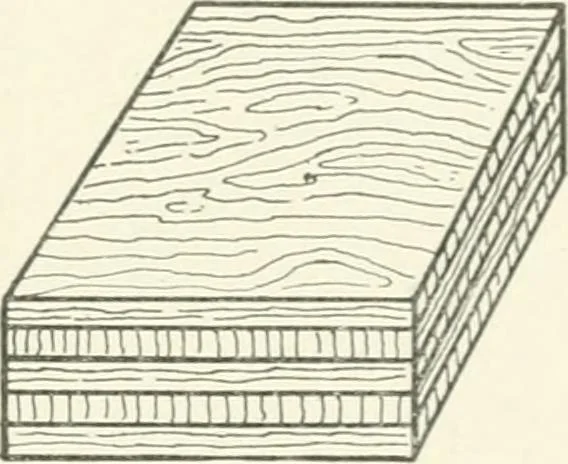

a close joint, after which they are glued I and clamped together over the arms with liand screws. ! The hubs are next turned, each from a solid block, or better I from thin pieces \ inch to § inch in thickness, each thin piece being I placed crosswise on the other, as shown in Fig. 172. The hubs… … 92 PATTERN MAKING of rim, arms, and hub, and finish with three coats of shellac, sand-papering smooth betweiHi each coat, as already described for otherpatterns. The making of patterns for special pulleys enters largely intothe work of many pattern shops. In these patterns the rims arebuilt up of…
