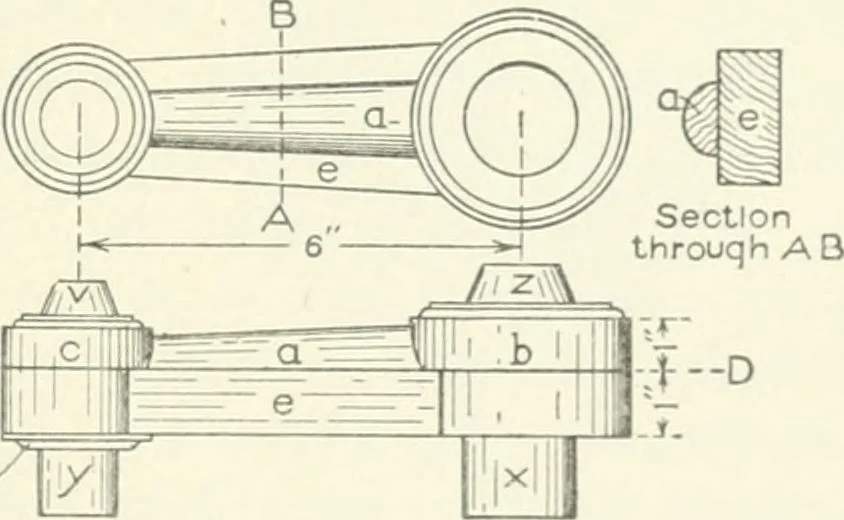

art e is sawed to shape, sawingclose to, but not touching h and c with the saw. The thin boss dis next glued in place, after which e is filed and dressed to therequired shape and even with h and c, giving it the same draft,\ inch to 12 inches, but in the opi)osite direction from the partingline C… … 102 PATTERN MAKING
