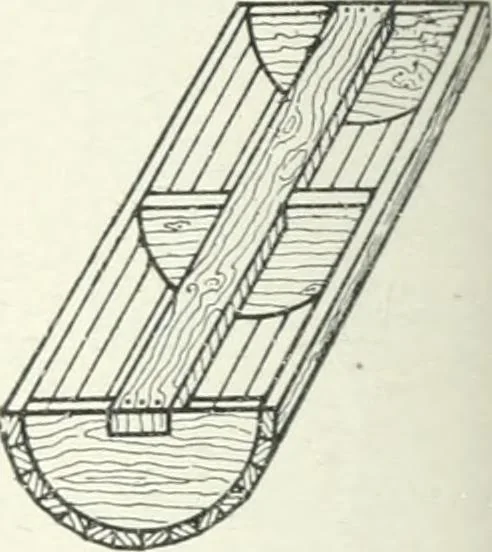

Fig. 205. … Fig. 2O0. For large cylinders, a much lighter and simpler method ofconstructing the pattern is shown in Fig. 206. For each half ofthe pattern the two end discs, and the middle semicircular disc areconnected together by a strong c(mter bar, which is fitted, glued
