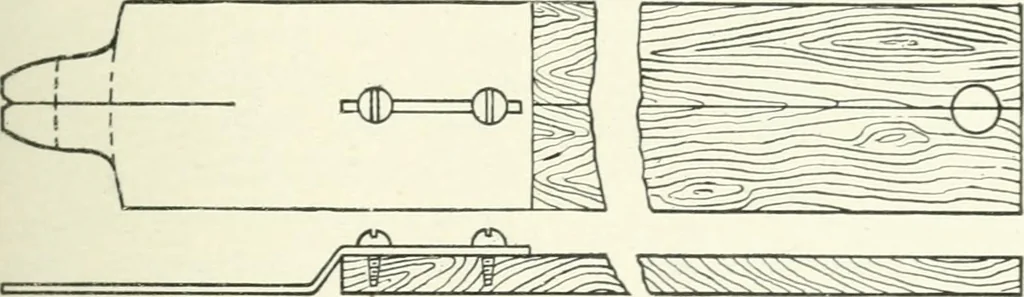

l size in the detaildrawings furnished to the pattern maker. Should the wheel be of small diameter the template may belaid out and cut on the end of a long strip of zinc, but it is betterto fasten the template to the end of a wooden bar, as shown inFig. 242 a narrow slot having been cut through the… … Fig. 242. it is customary to use a block of wood as a temporary hub, thecenter of which may be easily found from the periphery of theblocks by the dividers. A very slight, sharp notch is made in theexact center of the end of the tooth template, which must be radialto the hole in the opposite end of…
