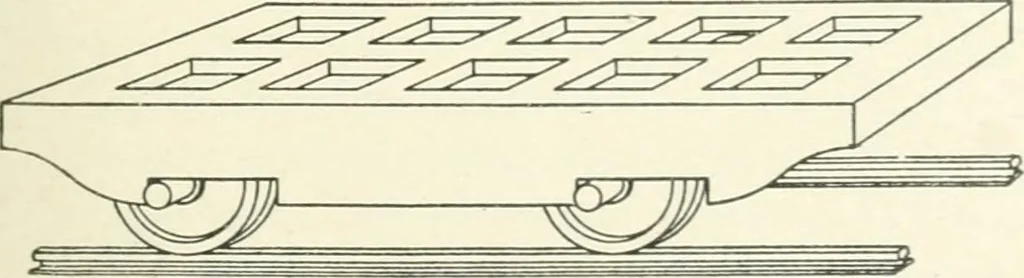

Fig. 60. Core Oven for Large Work. inches in diameter inside of half an hour. Each shelf is fastened toits own door and when open, for receiving or removing cores, a doorat the back of the .shelf closes the opening. This prevents a waste ofheat. Fig. 60 shows the section through an oven suitable… … Fig. 61. Cast Iron Car. floor level diagonally opposite is the flue B for conducting the wa.steheat to the stack C. The entire front of the oven may be opened byraising the sheet steel door. Two tracks side by side accommodatecars upon which heavy work is run into the oven. Fig. 61 .shows agood…
