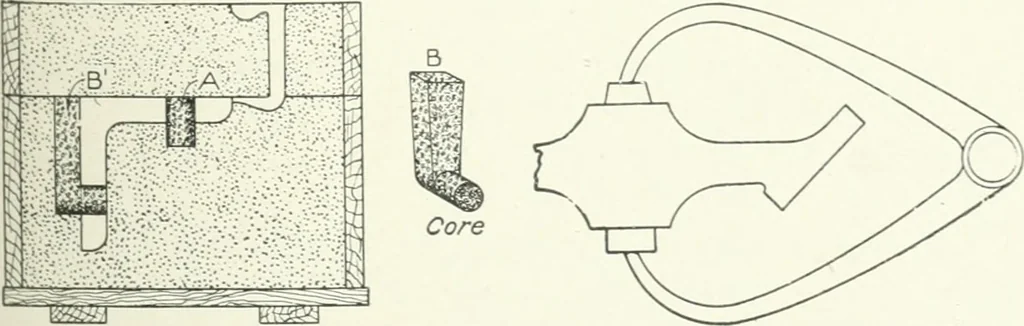

groove when the core hasrun to the full length of the plate. The advantage of the machine is that with it an apprentice boycan produce a true, smooth, perfectly vented core, in very much lesstime than could possibly be done by hand ramming. SETTING CORES The following examples show typical ways of… … Fig. 70. Bolt-Hole Core Fig. Tl. Calipers. should just touch the cope surface of the mold. The level may betested by a straight stick or by sighting across the joint. If the coreis too long, one end may be filed off a little; if too short, a little sandmay be filled into the bottom of the print.…
