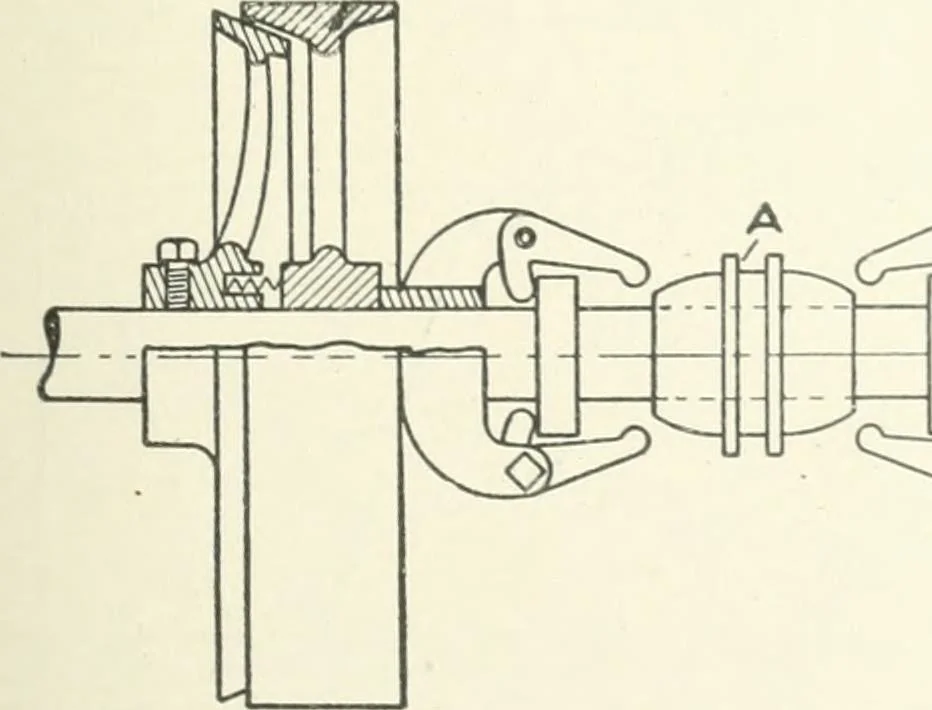

Fig. 23. in either direction according as one or the other clutch is thrownin. When A is in the position shown neither clutch is in and theshaft is at rest. SCREWS. The Helix. Since all screws depend upon a curve known as … ^^^^^ ^^y ^m. Fis:. 24. the helix, it will be necessary to understand something about thiscurve before attempting the study of the screw. Take a cylindrical piece of wood, such as is shown in Fig. 25.and a rectangular piece of paper, ABFE, with the side AB equal 333 26 MECHANISM. to the…
