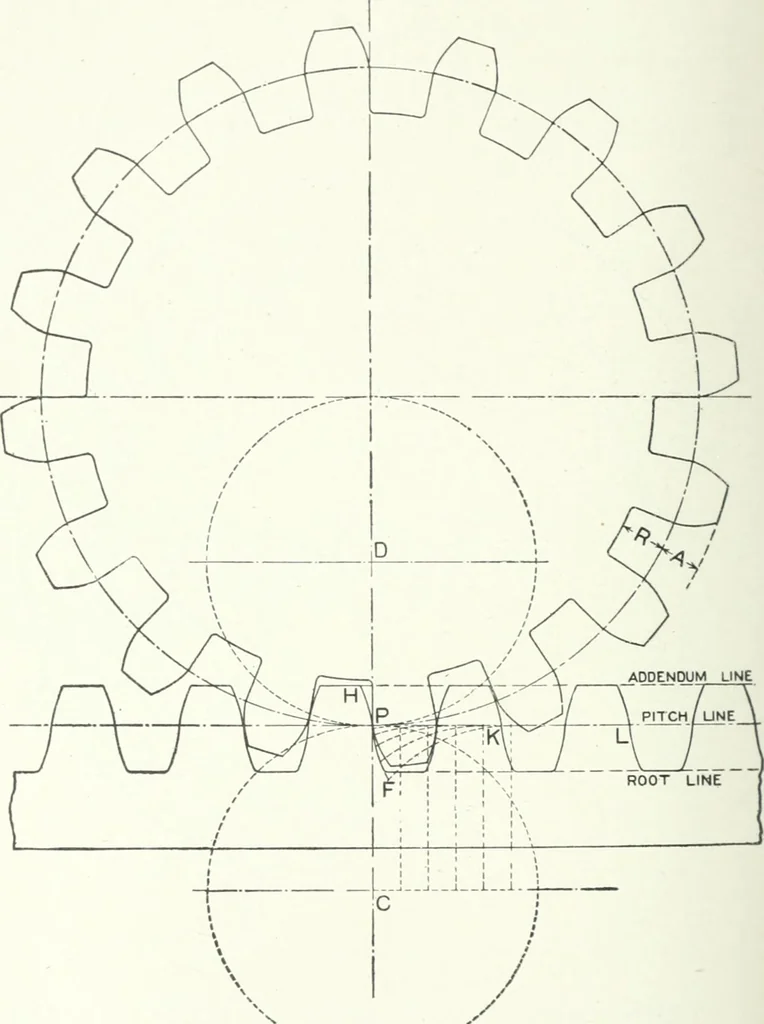

Annular Gears. An annular gear is a ring with teeth on itsinside edge. Fig. 62 shows such a gear with center at A, mesh-ing with a small spur gear called the pinion. Rack and Pinion. A rack is a gear whose pitch line is astraight line instead of a circle. Fig. 63 shows an epicycloidalrack in gear… … Fig. G.3. 366 MECHANISM. 59 Bevel Gears. IVTien two shafts whose axes intersect are tohe fuiinected l)y gears, the gears commonly used are called bevelgears. The theoretically correct pitch surface of a bevel gear is a])art of the sector of a sphere, but as the designing and makingof such a gear is…
