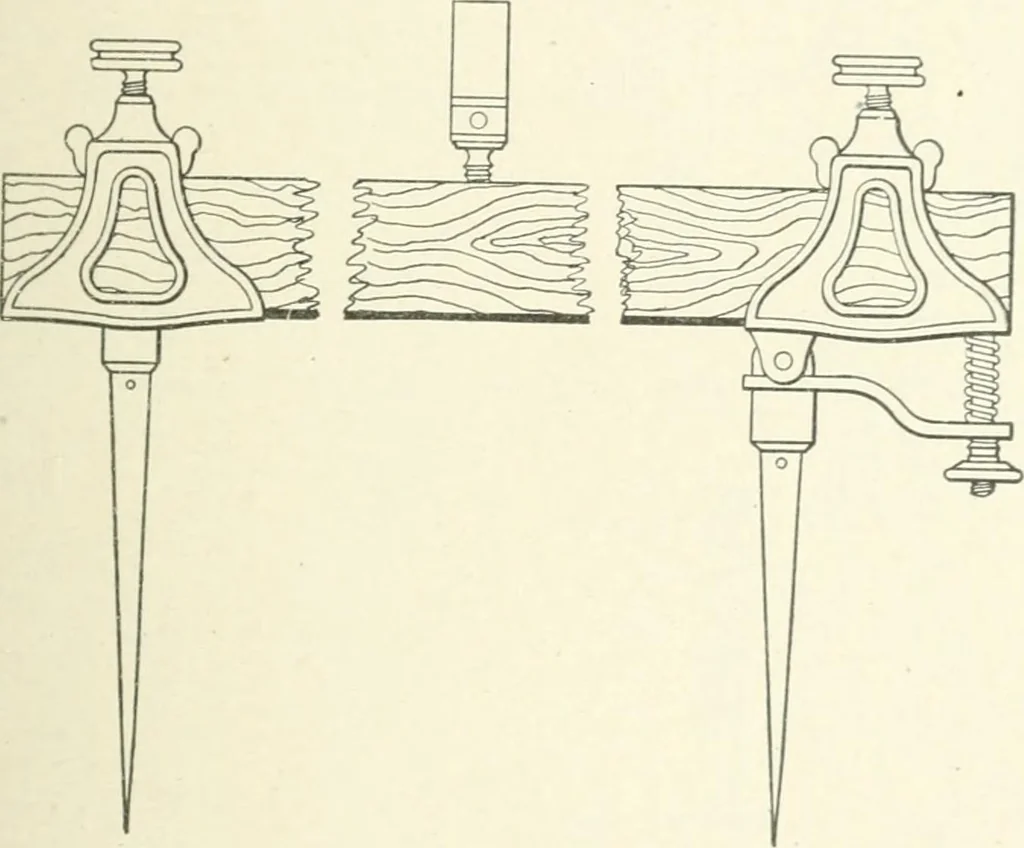

inary wood-workers dividers can be boiiglit iu manyforms, the most common being the scre\v=adjusting wing dividers, shown in Fig. 57. Tliis form is reliable, and is easily adjusted tothe reciuired distance between points. Moreover, when clamped bythe thumb-screw, it is not liable to be altered by a… … Fig. 60. For spacing the teeth of gear wheels, and for other workin which great accuracy is required, a pair of 2|-inch or 3-inchdividers, such as are shown in Fig. 59, will be found necessary. The trammel is used when the distance between the pointsto be reached is too great for the ordinary…
