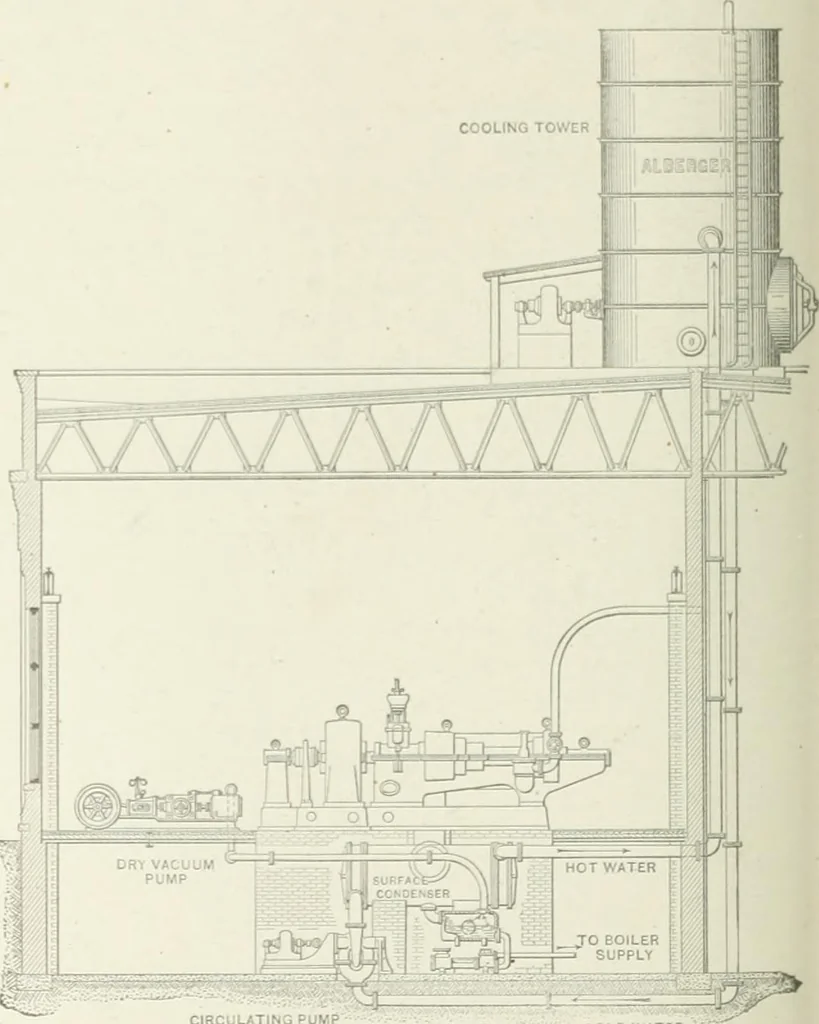

tles. The principal title of a drawing shoildcontain at least seven items: (1) Name of priDcip.il details shown. (2) Name of machine. (3) Firm name and lucatioD. (4) Scale of drawing. (5) Date of completion. (6) Draftsmans sign.ituro. (7) Filing number. To these are often added others, hut for… … - HOT WELL tOLD V.ATER COOLING TOWER AND SURFACE CONDENSER AS APPLIED TO STEAM TURBINE.Alberger Condenser Company. MECHANICAL DRAWING 27 An arrangement of title should bo established and then fol-lowed exactly, without variation eitlier as to Ideation on sheet ordetail make-up. Abbreviated words…
