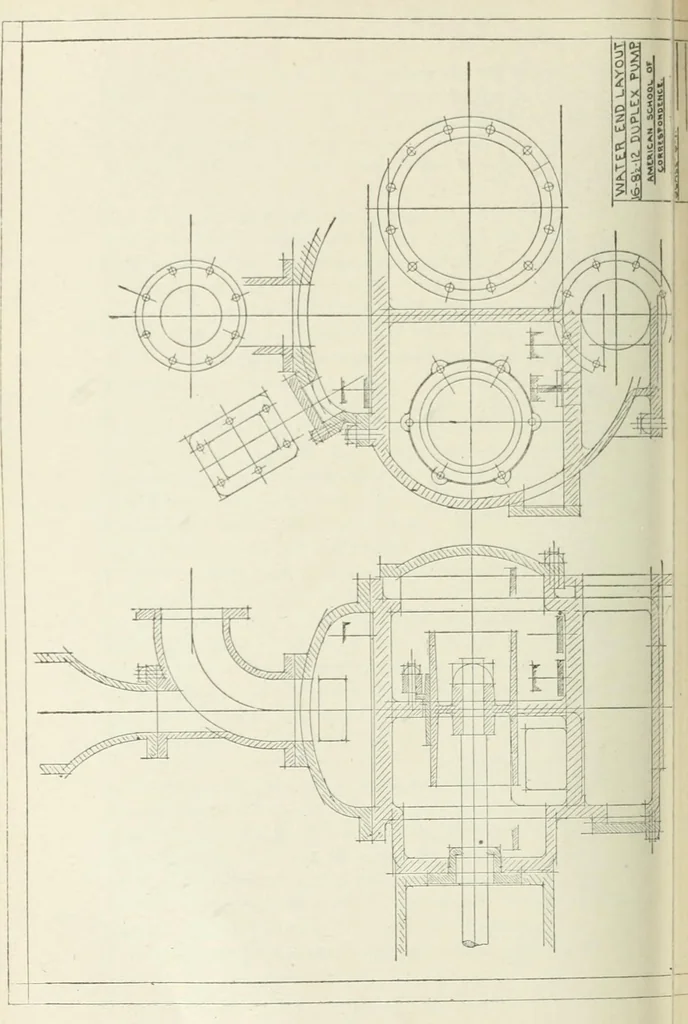

. The relative length of plunger and bushing should allow theend of the plunger to overrun the edge of the bushing at the ter-mination of the stroke, to prevent the formation of a shoulder.Tiie bushing is made of brass because of the better bearing ofthe two dissimilar metals, brass and iron. Of… … MECHANICAL DRAWING. ilisuse. The liushing being of expensive material is made as lightas possible, hence it has no stiifness of its own. Therefore it isreinforced by a deep cast-irou ring, which also takes the bolts andchimps the bushing tightly to its ground seat. These stud boltsare usually…
