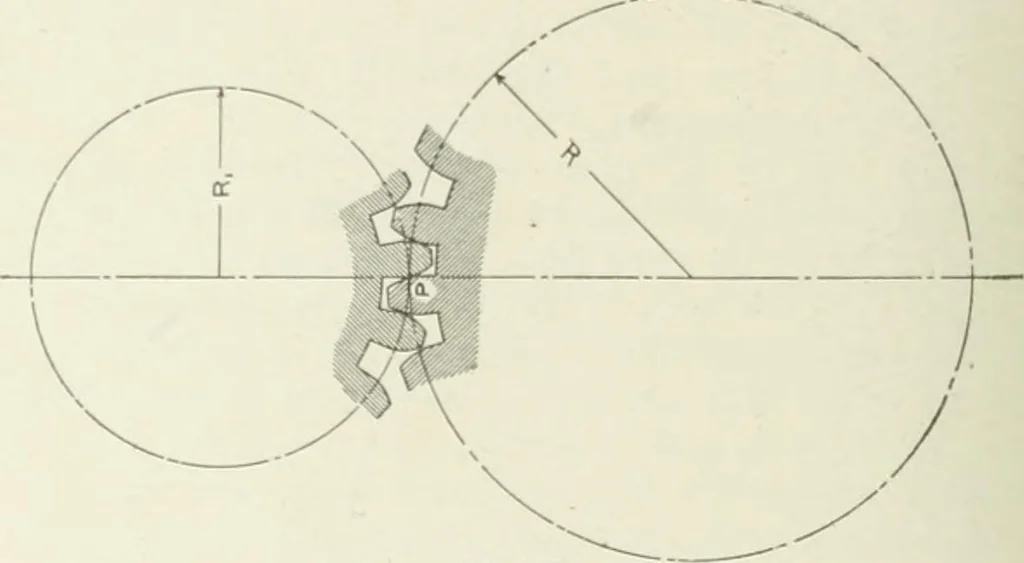

h are correctlyformed. Several mathematical curves are available for use astooth outlines, but in practice the involute and cycloidal curvesare the only ones used for this purpose. The ideal surfaces are known as pitch cylinders or pitchcircles. In Fig. 32 is shown an end view of .such a p;iir of… … Fig. .32. pitch point are equal. If M and M, be the revolutions per minuteof the cylinders respectively, r and i\ their radii, then 2ir»M = 2 7rr,Mi; That is, the number of revolutions varies inversely as the radii. The simple calculation as above is the key to all calculationsinvolving gear trains…
