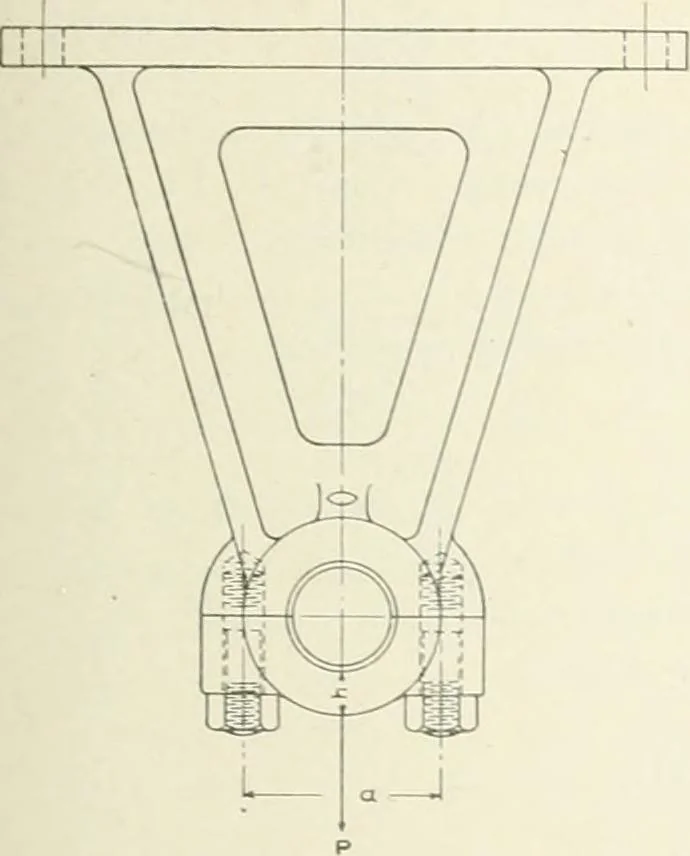

P in Fig. 76, we havethe condition of a centrally loaded beam supported at the bolts.It is probable that the beam is partially fixed at the ends by theclamping of the nut; also that the load P, instead of being con- MACHINE DESIGN- ITS centraUd at the center, is to some extent distributed. It is… … T+- lA...-^.. Fig. 76.ing tlie external moment to the internal moment of rer,istauce,Fa SI SW , , from whieh, the length of bearing being known, we may calculatethe thickness /«. One bolt on each side is sufficient for bearings not morethan G inches long, but for longer bearings we usually find…
